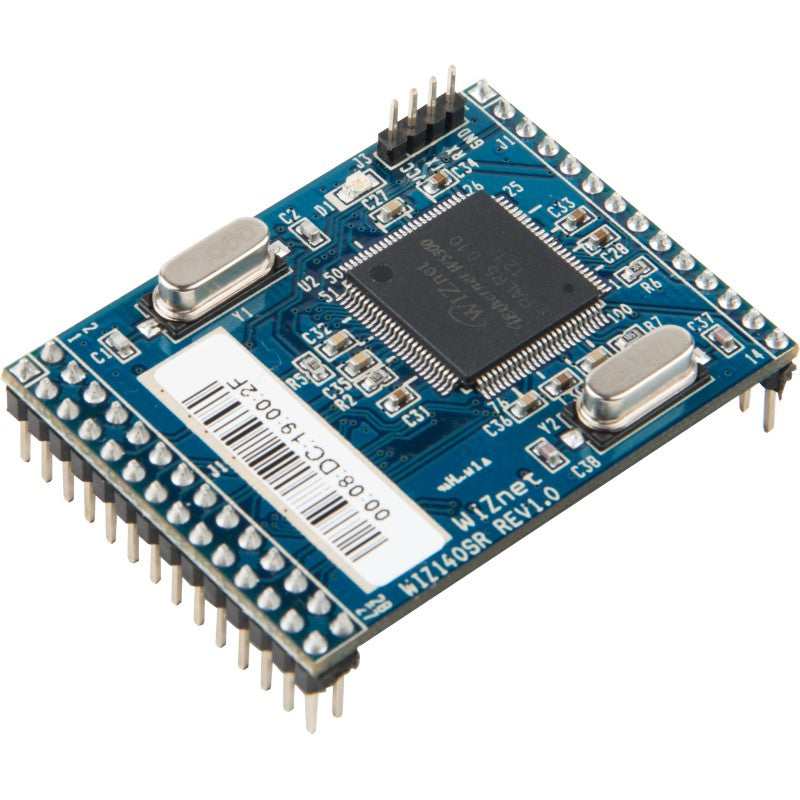

WIZ140SR Module: Ethernet; 3.3VDC; UART x4; 2.54mm; pin header
Product Details
- Serial to Ethernet Module based on W5300 & Cortex-M3
- Pin-header mounted module
- Serial signals : TXD, RXD, RTS, CTS, GND signals (4 UART/RS-232C)
- Support the configuration method of AT command & Configuration tool program
- 10/100Mbps Ethernet & Max.115.2kbps serial speed
- Support WIZ VSP (Virtual Serial Port) program
Hardware Specification
- Pin Header Connector Type : 2.5mm Pitch (1×14, 2×14)
- Dimension (mm) : 48 x 36 x 16
- Input Voltage : 3.3V
- Max. Power Consumption : 250mA
- Operation Temperature : 0 ~ 70℃
- RoHS, SVHC Compliant
Utilities
- Configuration Tool for Windows
- WizVSP: Virtual Serial Port (COM port) for User’s Programs
Pin Assignment
Specifications
| Brand | Wiznet |
|---|---|
| Category | Ethernet; 3.3VDC; UART x4; 2.54mm; pin header |
