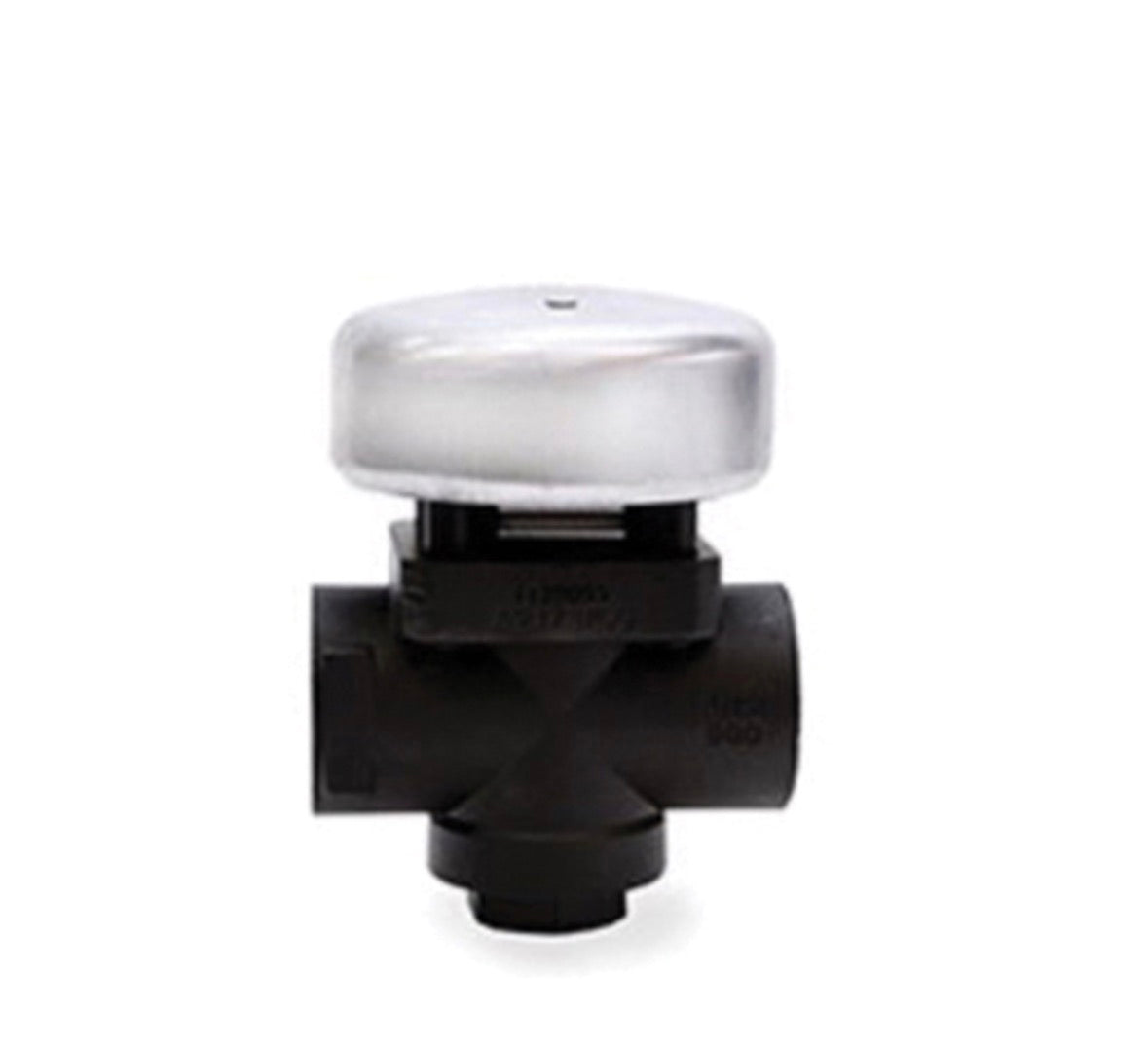

Spirax Sarco 0686762, 1" TD62LM Steam Trap
Product Details
DESCRIPTION
Spirax Sarco Thermo-Dynamic Steam Trap, Low Capacity, 1 in Nominal, ANSI 600 Flange, 6.3 in Length, 900 psig, Steel Alloy
The TD62LM and TD62M are maintainable high pressure thermodynamic steam traps with integral strainer and a replaceable seat to ease maintenance. They have been specifically designed for mains drainage applications up to 62 barg. The TD62LM is specifically designed for relatively small condensate loads on superheat and mains drainage applications. An insulating cover is fitted as standard to prevent the trap being unduly influenced by excessive heat loss when subjected to low outside temperatures, wind, rain etc.
SPECIFICATIONS
ITEM FEATURES
- Maximum allowable pressure: 1500 psig
- Maximum allowable temperature: 977 deg F
- Cold hydraulic test pressure: 2250 psig
- 120 psig minimum pressure for satisfactory operation
- Maximum back pressure should not exceed 50% of the inlet pressure under any conditions of operation, otherwise the trap may not shut
- Horizontal installation
Specifications
| Brand | Spirax Sarco |
|---|---|
| Category | Steam Trap |
Need a datasheet, cross-reference, or bulk pricing? Request a quote
Shipping & Returns
-
Ships in One Business Days
In-stock orders are packed and handed to the carrier within 3 business days. Tracking is emailed as soon as it ships.
-
30 Business Day Returns
Unused items in original packaging can be returned within 30 business days of delivery.
-
LTL Delivery
Large or heavy items ship via LTL freight carrier. Lift-gate delivery is included at no extra charge.
Spirax Sarco 0686762, 1" TD62LM Steam Trap
$3,999.00
