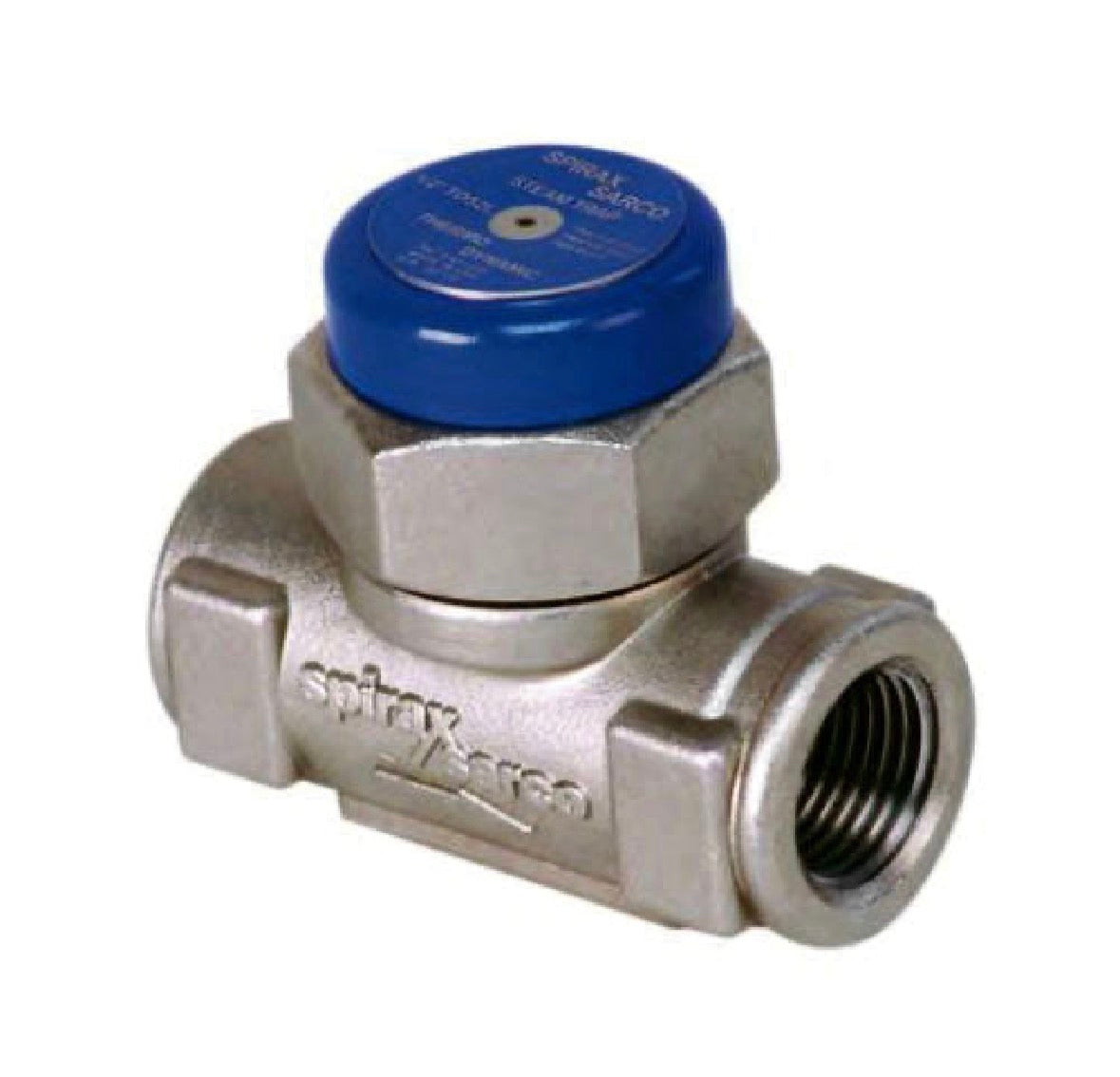

Spirax Sarco Thermo-Dynamic® 54532C, TD52 Steam Trap, 1 in, FNPT, 800 deg F, 600 psi, Stainless Steel
Description
Spirax Sarco Thermo-Dynamic® Steam Trap, 1 in Nominal, FNPT, 3.3 in Length, 600 psi, Stainless Steel, Electroless Nickel Plated, 800 deg F, 2-1/2 in W
The Thermo-Dynamic® steam trap cycles periodically to discharge condensate very near to steam temperature, it is unaffected by water hammer or superheat.
Brand: Spirax Sarco
Weight: 2.8 lbs
Nominal Size: 1 in
End Style: FNPT
Material: Stainless Steel
Max Operating Pressure: 600 psig
Max Allowable Pressure: 600 psig/up to 800 deg F
Max Allowable Temperature: 800 deg F/up to 600 psig
Dimensions: 2-1/2 in W
Finish: Electroless Nickel Plated
Length: 3.3 in
Manufacturer Name: Spirax-Sarco Inc
Series: TD52
Application: For Steam main drainage and tracer lines, process equipment, laundry and kitchen equipment, superheated steam applications, outdoor installations subject to freezing
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A743 Grade CA40F Body
Item Features
- Caution: only perform maintenance after trap has been isolated
- Minimum pressure for satisfactory operation is 3.5 psig
- Maximum back pressure should not exceed 80% of the inlet pressure under any conditions of operation, otherwise the trap may not shut
- 600 psig at 800 deg F Maximum allowable pressure
- 800 deg F at 0 to 600 psig Maximum allowable temperature
- Inline horizontal piping configuration
Vendor: Spirax Sarco
