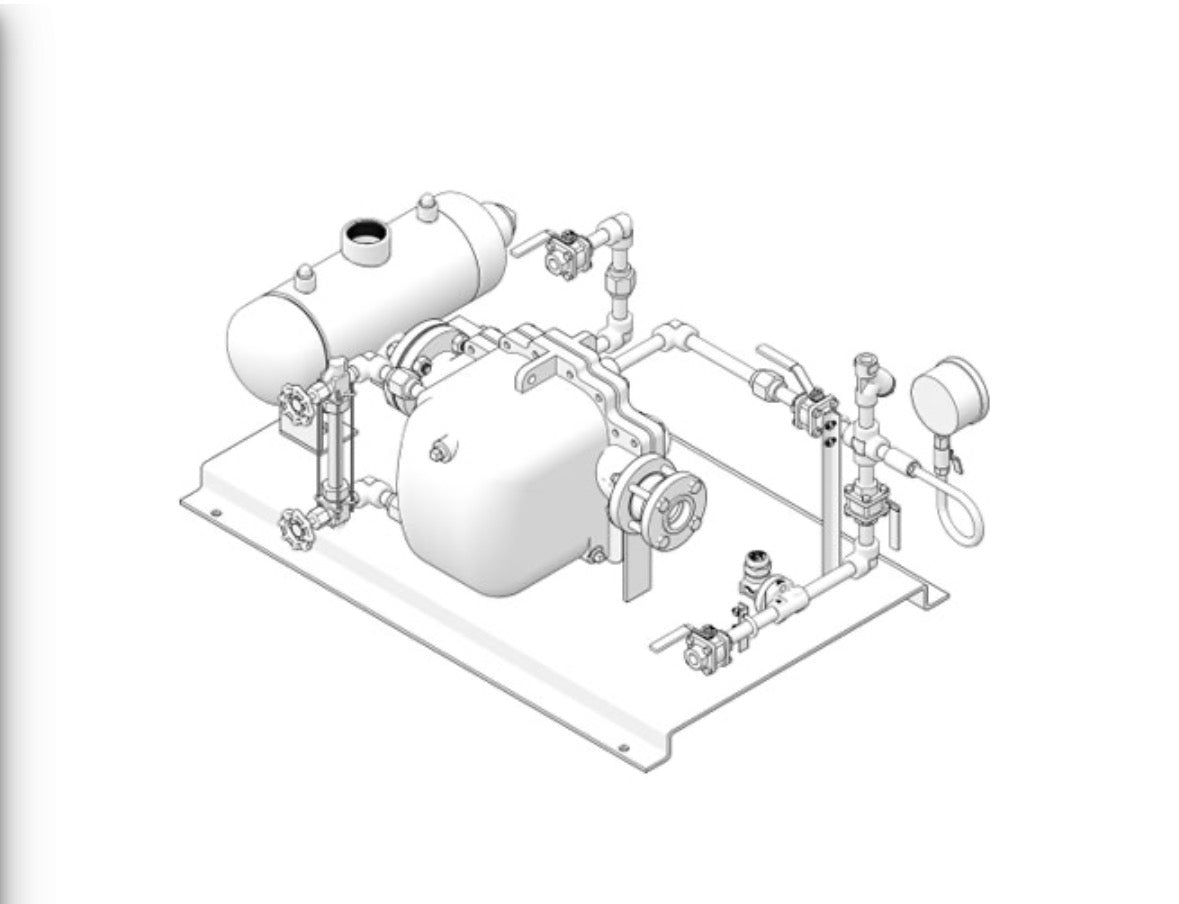

Spirax Sarco ES002124 APT14HC Simplex Pump Package With Assembled Air Vent and Exhaust Pipe, Ductile Iron Body, 2 in Inlet x 1-1/2 in Outlet, ANSI 150 Flange, Model SPT4HC

Brand: Spirax Sarco

Availability:In Stock

Ships within 3 business days

$21,000.00 USD
$21,000.00 USD
Shipping calculated at checkout.

Description

Spirax Sarco Pump Package, Simplex, Series: APT14HC, 2 in Inlet, 1-1/2 in Outlet, 200 psig Maximum, Ductile Iron Body, Enamel Coated

The compact low profile modular pump/trap system consists of the versatile APT10, APT14, APT14HC and APT14SHC automatic pumping trap pre-piped and mounted on a steel base. The simplex or duplex modules include a condensate reservoir sized to accommodate the pump cycles. The module requires only service field connections for complete installation and fast startup.



SPECIFICATIONS

Brand: Spirax Sarco
Weight: 503 lbs
Body Material: Ductile Iron
Inlet Size: 2 in
Outlet Size: 1-1/2 in
Connection Type: ANSI 150 Flanged
Type: Simplex
Series: APT14HC
Finish: Enamel Coated
Manufacturer Name: Spirax-Sarco Inc
Maximum Pressure: 200 psig
Application: Air Handlers, Heat Exchangers, Absorption Chillers, Evaporators and Dryers
Standards and Approvals: ANSI Class 150 | ASME Section IX

ITEM FEATURES

  • Spirax Sarco non-electric APT14HC automatic pump trap
  • Motive steam drip station with Spirax Sarco UTD 52L trap and isolation valves and air vent
  • Hydro tested and coated with SSI industrial enamel
  • Completely assembled modular pumping system on platform steel base with all connections protected for shipping
  • Furnish and install where shown on plans, Spirax Sarco Inc model SPT4HC/DPT4HC pressure powered pump/trap system
  • The system shall be a complete pre-piped factory package requiring only service connections for a fully functional system
  • Electricity shall not be required for system operation
  • The pump/trap shall be constructed of ductile iron with an allowable working pressure of no less than 200 psig
  • The pump/trap shall be a unified system with stainless steel mechanism and no external glands or seals
  • Individual pump and trap systems will not be acceptable
  • The package shall be sized to meet (or exceed) the actual required condensate system load
  • The package shall include a structural steel platform skid and painted with one coat enamel
  • 3000 fittings with threaded pipe connections included wherever possible

Vendor: Spirax Sarco
