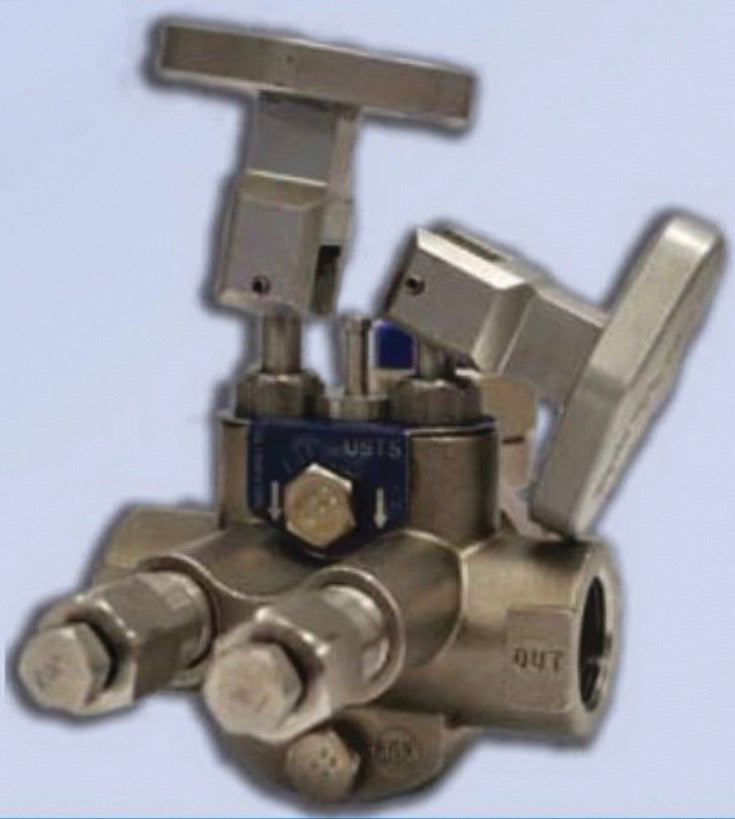

Spirax Sarco 74516 USTS II Compact Universal Steam Trap Station, 3/4 in Nominal, FNPT Connection, 650 psig Pressure, Stainless Steel
Description
Spirax Sarco Universal Steam Trap Station, Compact, 3/4 in Nominal, NPT, 650 psig, 750 deg F, Right to Left (Left Hand) Flow Direction, Stainless Steel
The Spirax Sarco USTS II series of steam trap stations have been designed to be a complete trap station in a very compact size. The trap station is comprised of two isolation valves for inlet and outlet flow, an inlet strainer blow down valve and an out test valve with mount for a universal style of steam trap. Blowdown valves can also be used for depressurization of station for trap maintenance.
SPECIFICATIONS
Brand: Spirax Sarco
Weight: 3.8 lbs
Nominal Size: 3/4 in
Connection Type: FNPT
Pressure Rating: 650 psig
Material: Stainless Steel
Flow Direction: Right to Left (Left Hand)
Manufacturer Name: Spirax-Sarco Inc
Temperature Rating: 750 deg F
Type: Compact
Application: For use with steam main drips, tracers, and small process flows
Country of Origin: US
Standards and Approvals: ASTM A351 CF8 Body
ITEM FEATURES
- Works with all standard universal connection steam traps
- Allows for trap change out in less than 5 min
- Minimal heat loss
- Easy operation
- Robust construction
- One 1/2 in wrench operates blowdown valves
- Maintainable (can be cleaned)
- Horizontal installation
- Stainless steel handle
