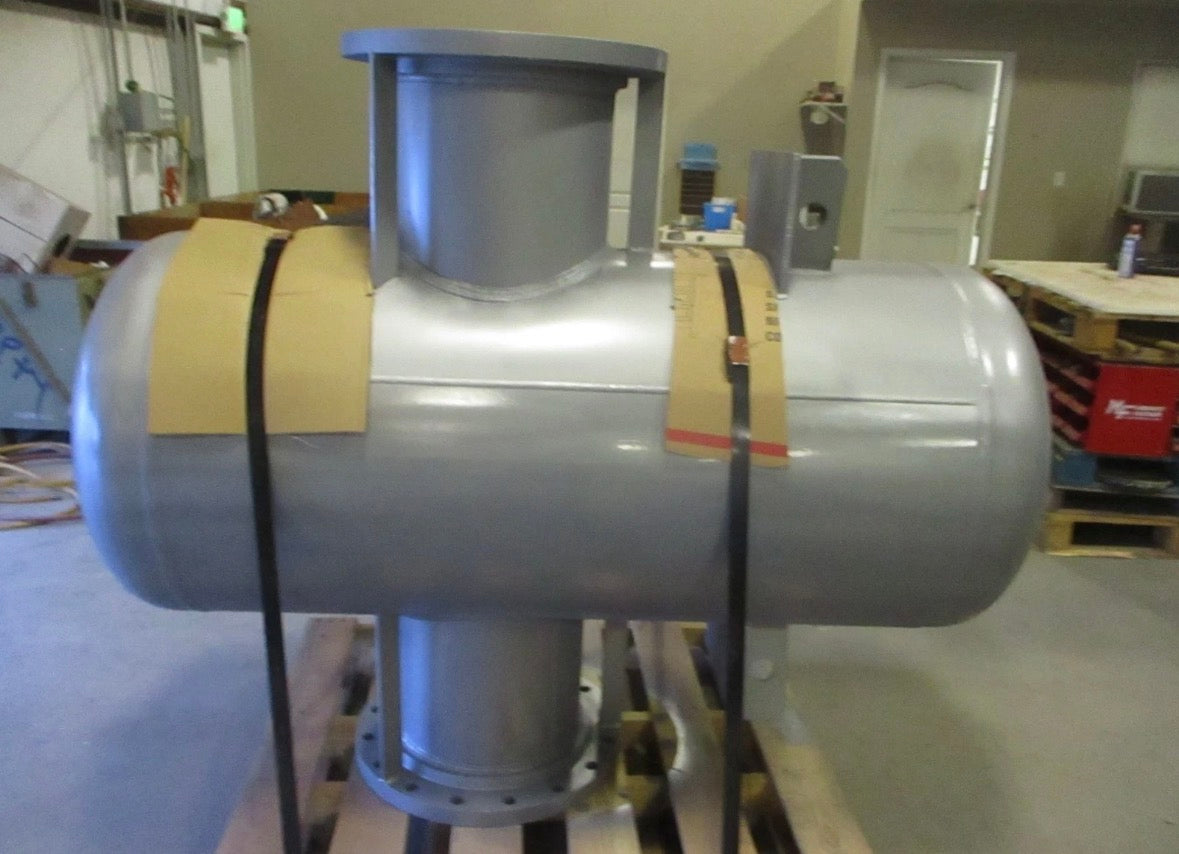

Spirax Sarco 67926, S4A Separator, 12 in, ANSI 150 Flange, 150 psig, 91805 lb/hr Steam
Description
Spirax Sarco Separator, 12 in Nominal, ANSI 150 Flange, 150 psig, 91805 lb/hr Steam, -20 to 650 deg F, Fabricated Steel Body, 68 in H

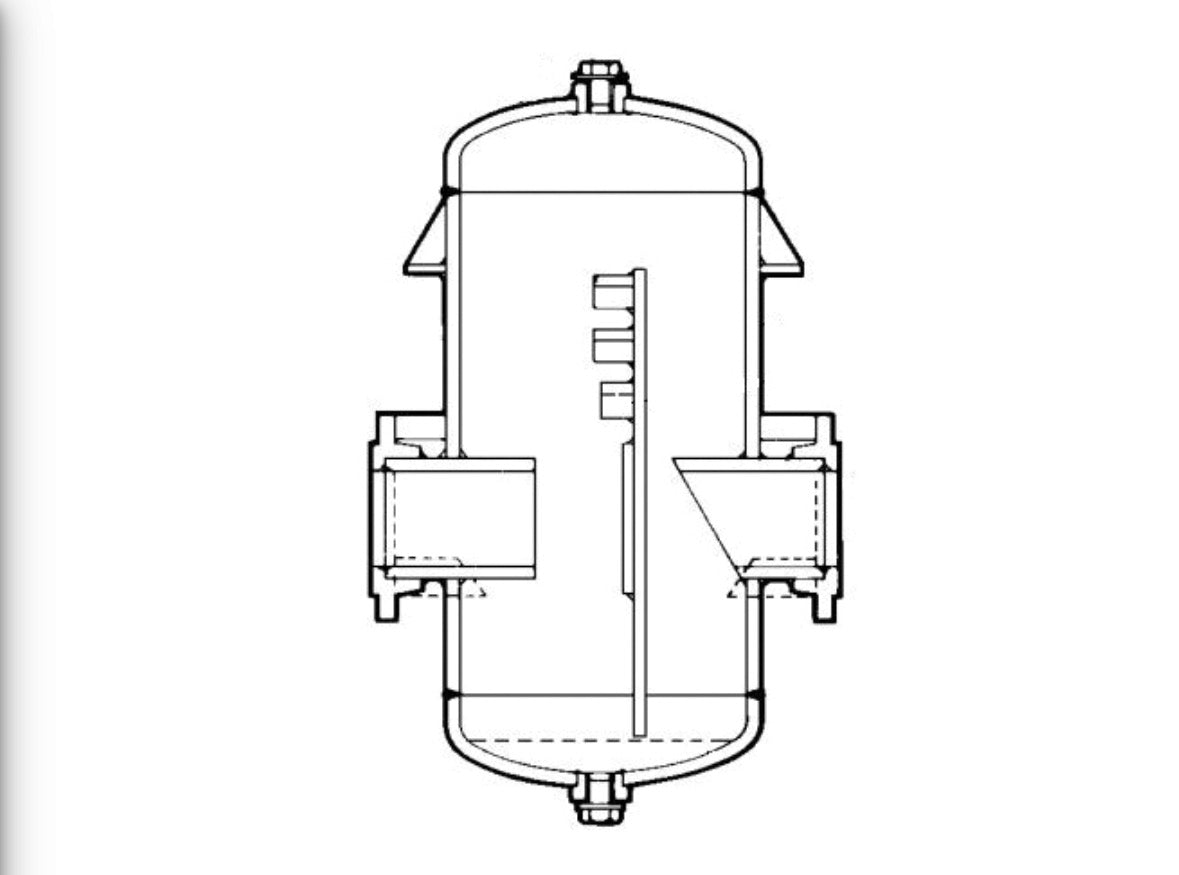

Moisture Separators are used to improve the quality of steam or compressed air either within the distribution system or on the supply inlet to equipment. Removal of moisture is by a series of baffles on which the suspended water droplets impinge and fall out by gravity to the drain, which must be piped to a trap.
SPECIFICATIONS
Brand: Spirax Sarco
Weight: 828 lbs
Nominal Size: 12 in
End Style: ANSI 150 Flange
Pressure Rating: 150 psig
Steam Capacity: 91805 lb/hr
Body Material: Fabricated Steel
Dimensions: 68 in H
Manufacturer Name: Spirax-Sarco Inc
Temperature Rating: -20 to 650 deg F
Application: On steam mains, Compressed air lines, Steam turbines, Heat transfer processes, Meter protection, Steam distribution systems, Protection of equipment requiring dry saturated steam, Removal of moisture from steam, Air or gas systems
Country of Origin: US
ITEM FEATURES
- 150 psig ASME code stamped
- Maximum allowable working pressure: 150 psig
- Maximum allowable working temperature: -20 to 650 deg F
