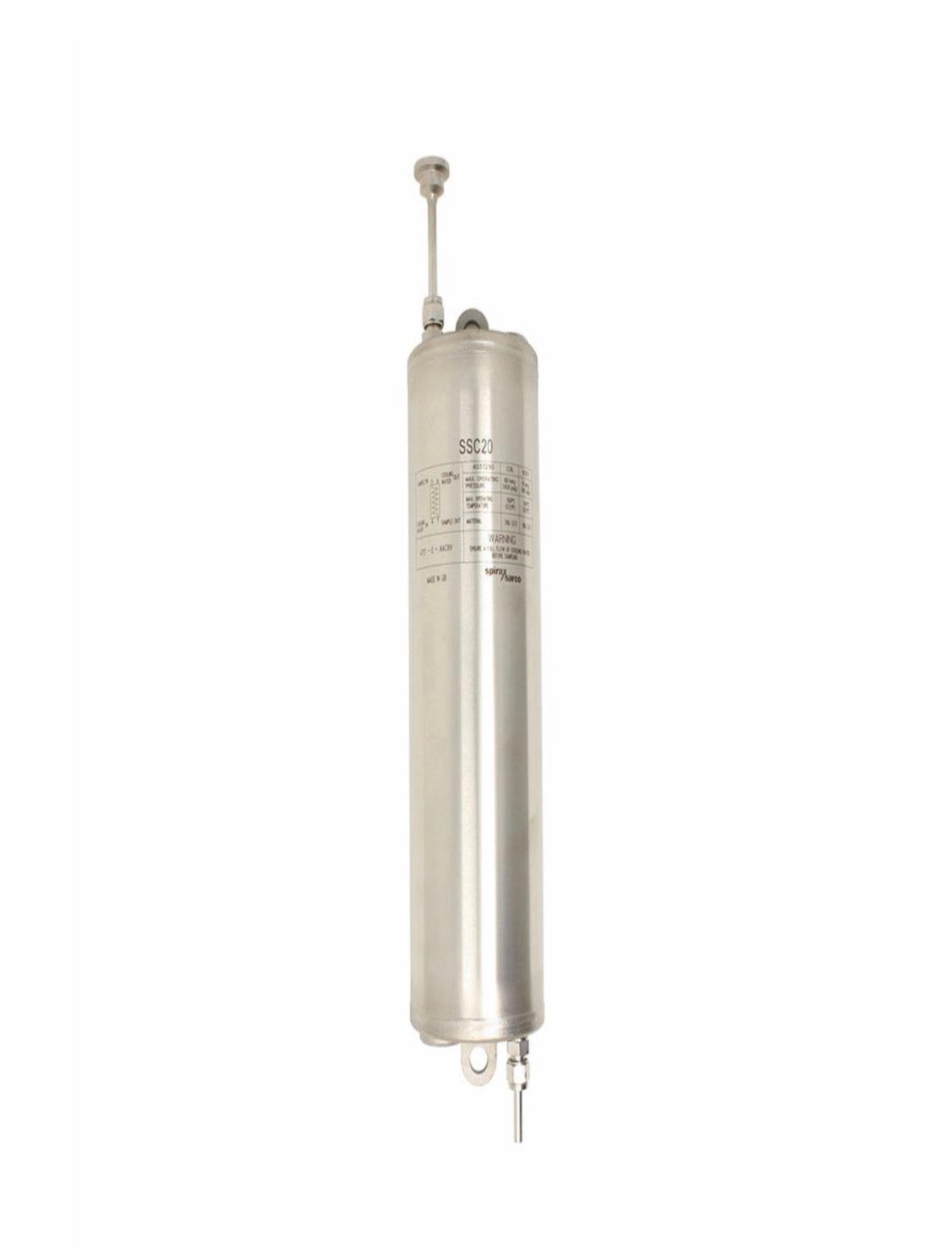

Spirax Sarco 4037290, SSC20 Sanitary Sample Cooler, 1/2 in Cold Water Inlet, Austenitic Stainless Steel
Description
Spirax Sarco Sanitary Sample Cooler, 1/2 in FNPT Cold Water Inlet, 1/2 Clamp Inlet & 6mm OD Tube Outlet Sample Tube Connections, Austenitic Stainless Steel, 17.7 in H
The Spirax Sarco SSC20 sanitary sample cooler has been specifically designed for taking high quality chemical, conductivity and microbiological samples quickly and safely from clean/pure steam, water for injection (WFI) and other high purity media systems. The unit consists of high quality 316L stainless steel components and utilizes a counter current flow to maximize cooler efficiency, resulting in a compact, space saving design.
SPECIFICATIONS
Brand: Spirax Sarco
Weight: 7.5 lbs
Material: Austenitic Stainless Steel
Cooling Water Connection: 1/2 in FNPT
Sample Tube Inlet Connection: 1/2 in Clamp
Sample Tube Outlet Connection: 6mm Tube
Dimensions: 17.7 in H
Manufacturer Name: Spirax-Sarco Inc
Series: SSC20
Country of Origin: US
Standards and Approvals: ASME BPE | EN 10204 3.1 | Grade 316L Body
ITEM FEATURES
- Internal surface finish of coil better than 20 u-in Ra (0.5 u-m Ra) to ensure high sterility
- Coil manufactured from fully traceable 316L stainless steel
- Self-draining design to eliminate sample retention
- Fully sterilizable/autoclavable - to ensure integrity of unit between samples
- Integral mounting bracket to facilitate simple installation
- Austenitic stainless steel coil
- 145 psig operating pressure
- 212 deg F operating temperature
