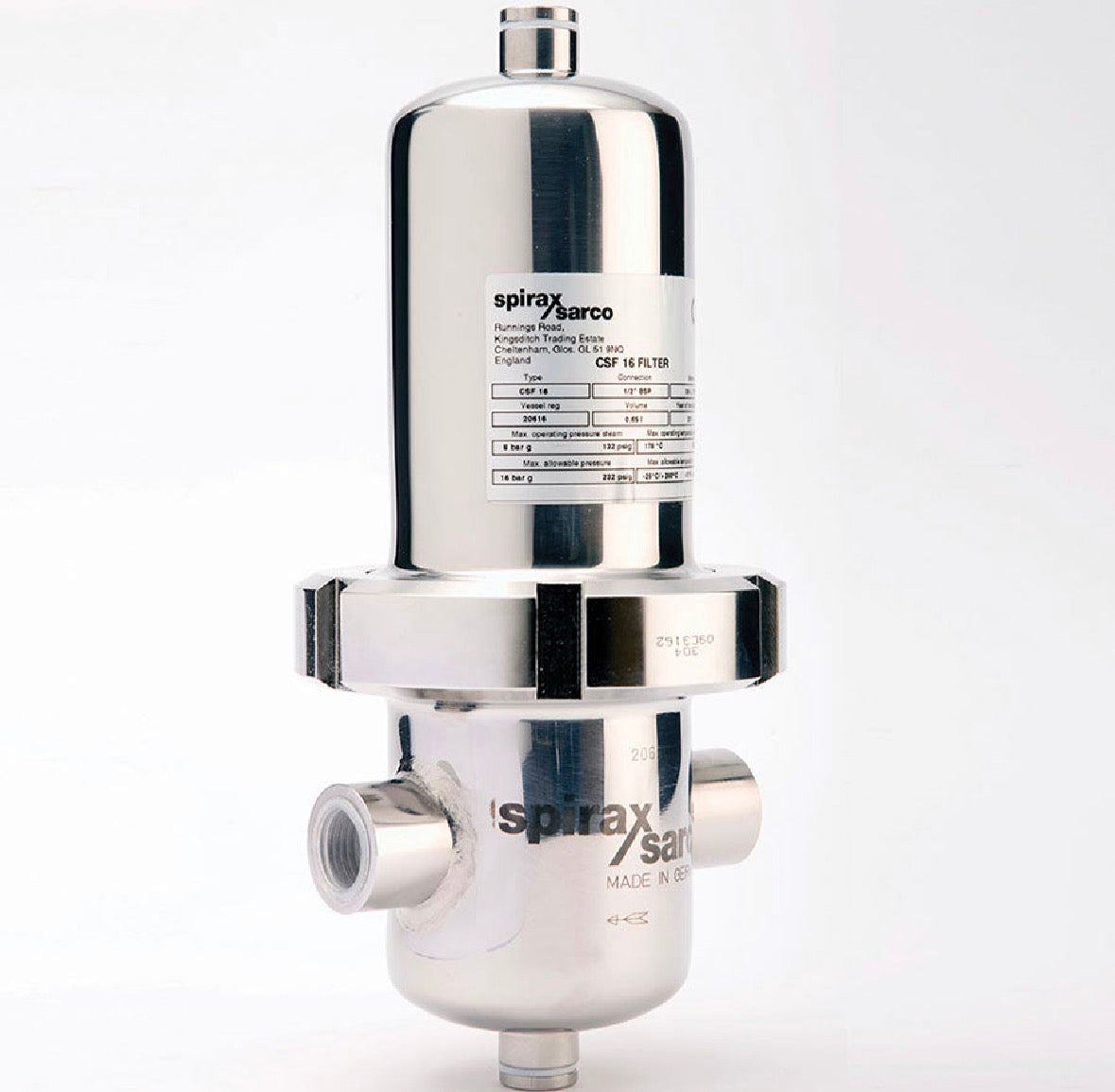

Spirax Sarco 1853992 CSF16 Clean Steam Filter Housing, 2-1/2 in Connection, 29.1 in OAL, 316 Stainless Steel

Spirax Sarco Clean Steam Filter Housing, 2-1/2 in, Flanged, 29.1 in Overall Length, 5.1 in Head Dia, 316 Stainless Steel, Internal Natural, 12 in W

The CSF16 and CSF16T are horizontal, in-line high efficiency filters used to remove contaminate particles from steam systems. The filter housing is available in a choice of austenitic stainless steel (1.4301) designated CSF16 or (1.4404) designated CSF16T. The DN8 to DN80 (1/4 to 3 in) housing is externally polished with an internal natural finish whereas the DN100 to DN200 (4 to 8 in) housing will have a natural finish both internally and externally. The housings are constructed in two halves, DN8 to DN80 will be joined by a food industry fitting to DIN 11851. DN100 to DN200 will be joined by bolts and nuts. Replaceable elements in sintered austenitic stainless steel are available with either 1, 5 or 25 micron absolute rating. In some pipe sizes the element is available in a choice of low capacity designated L and high capacity designated H.

Spirax Sarco CSF16 Sanitary Filters are not incuded with the housing, and should be replaced every two years. Please see below for available Filter Elements.
