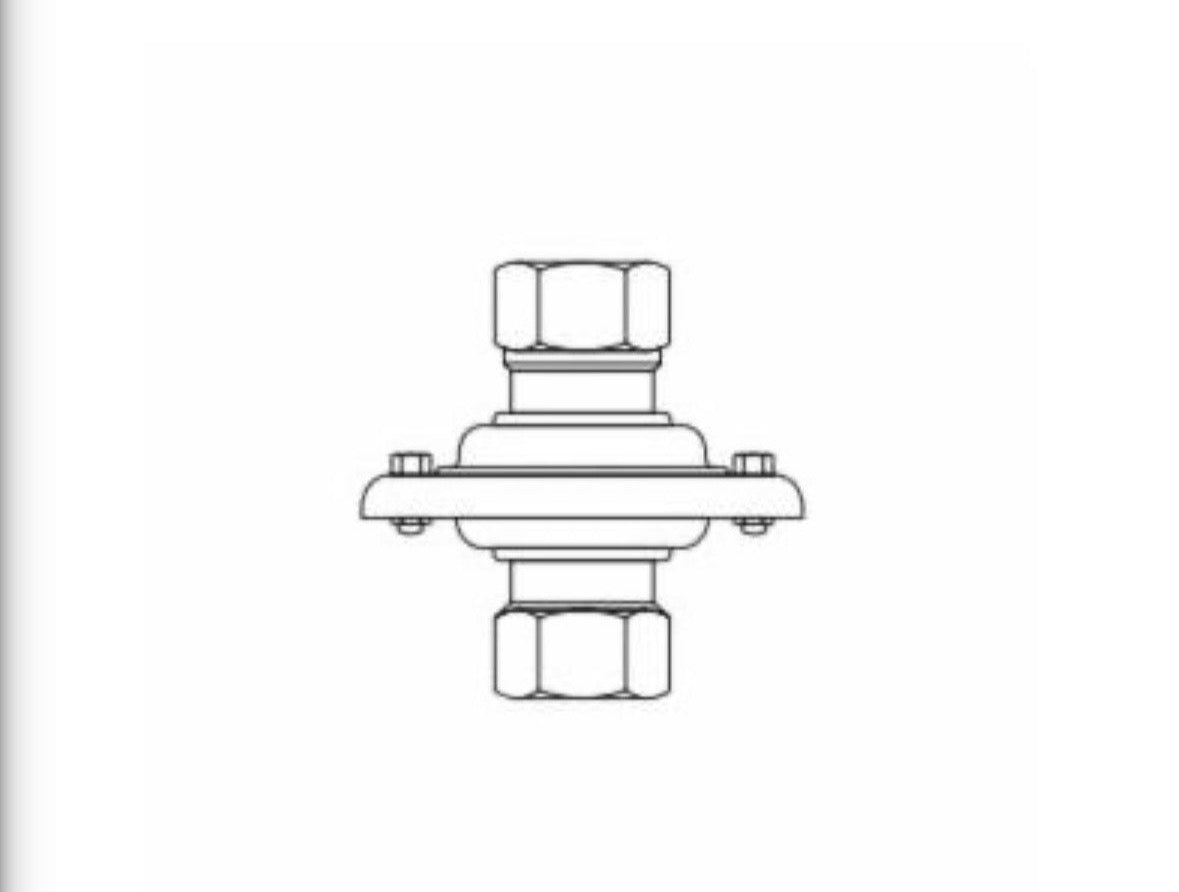

Spirax Sarco 1801660, BTM7 Balanced Pressure Thermostatic Clean Steam Trap, 1/2 in, FNPT, 32 to 338 deg F Operating, 102 psig Operating, 316L Stainless Steel
Description
Spirax Sarco Balanced Pressure Thermostatic Clean Steam Trap, 1/2 in Nominal, NPT, 102 psig Operating, 316L Stainless Steel, 32 to 338 deg F Operating, 2.9 in H
The Spirax Sarco BTM7 is a maintainable thermostatic steam trap designed to remove condensate from clean steam systems with minimal backing up. Applications include sterile steam barriers, process vessels and CIP/SIP systems. Manufactured in 316L stainless steel with minimal crevises, it is self-draining and operates close to steam temperature. Traps are individually packaged with protective end caps and sealed in a polythene bag.
SPECIFICATIONS
Brand: Spirax Sarco
Weight: 0.5 lbs
Nominal Size: 1/2 in
End Style: FNPT
Max Operating Pressure: 102 psig
Max Allowable Pressure: 102 psig/up to 338 deg F
Max Allowable Temperature: 338 deg F/up to 102 psig
Material: Stainless Steel
Dimensions: 2.9 in H
Manufacturer Name: Spirax-Sarco Inc
Series: BTM7
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASME BPE | EN 10204 3.1 | FDA approved | USP Class VI and FDA CFR title 21 Paragraph 177 Section 2600
ITEM FEATURES
- Maximum allowable pressure: 102 psig at 338 deg F
- Maximum allowable temperature: 338 deg F at 102 psig
- Minimum allowable temperature: 14 deg F
- Designed for a maximum cold hydraulic test pressure of 155 psig
- Vertical installation
