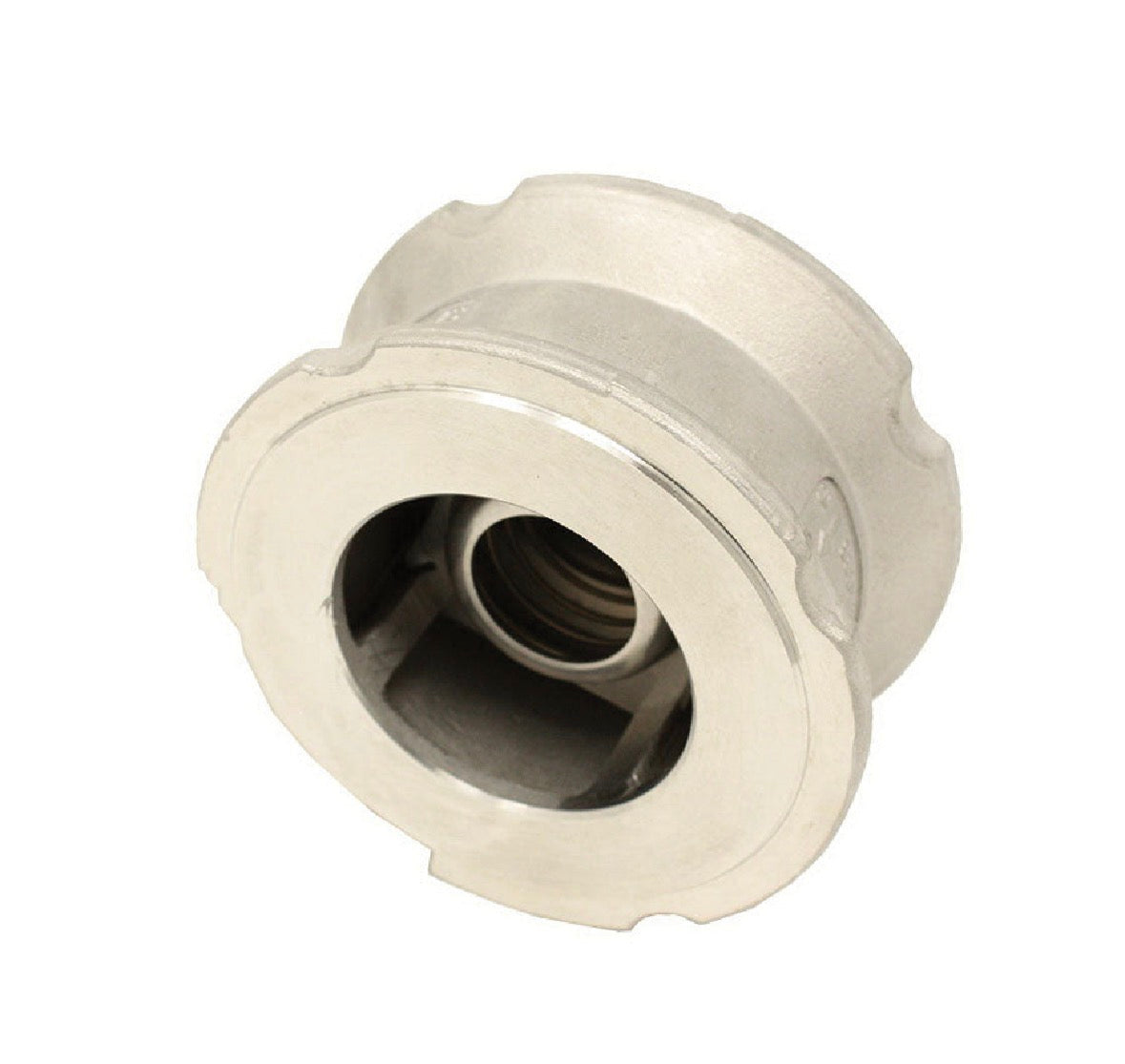

Spirax Sarco 1348200, DCV 4 Wafer Check Valve With Standard Stainless Steel Spring, 1 in, Austenitic Stainless Steel Body, Stainless Steel Disc, Stainless Steel Seat
Description
Spirax Sarco Check Valve, Wafer, 1 in Nominal, 725 psig, 572 deg F, Media: Steam/Water, 2.9 in Inlet to Outlet Length, Austenitic Stainless Steel Body, Metal Seat Trim
The DCV 4 Wafer Check Valve is designed to be fitted between ANSI flanges. It is suitable for use on a wide range of fluids for applications in process lines, hot water systems, steam and condensate systems.
Brand: Spirax Sarco
Weight: 1.2 lbs
Nominal Size: 1 in
Body Material: Stainless Steel
Seat Material: Stainless Steel
Disc Material: Stainless Steel
Inlet to Outlet Length: 2.9 in
Manufacturer Name: Spirax-Sarco Inc
Media: Steam/Water
Pressure Rating: 725 psig
Series: DCV4
Temperature Rating: 572 deg F
Trim Material: Metal Seat
Type: Wafer
Standards and Approvals: ASTM A351 CF3M Body
Item Features
- ANSI 300 body design condition
- Maximum cold hydraulic test pressure: 1102 psig
- -58 deg F minimum temperature
- Effective minimal maintenance free solutions
- Preventing reverse flow in pipelines
- Compact design
Vendor: Spirax Sarco
