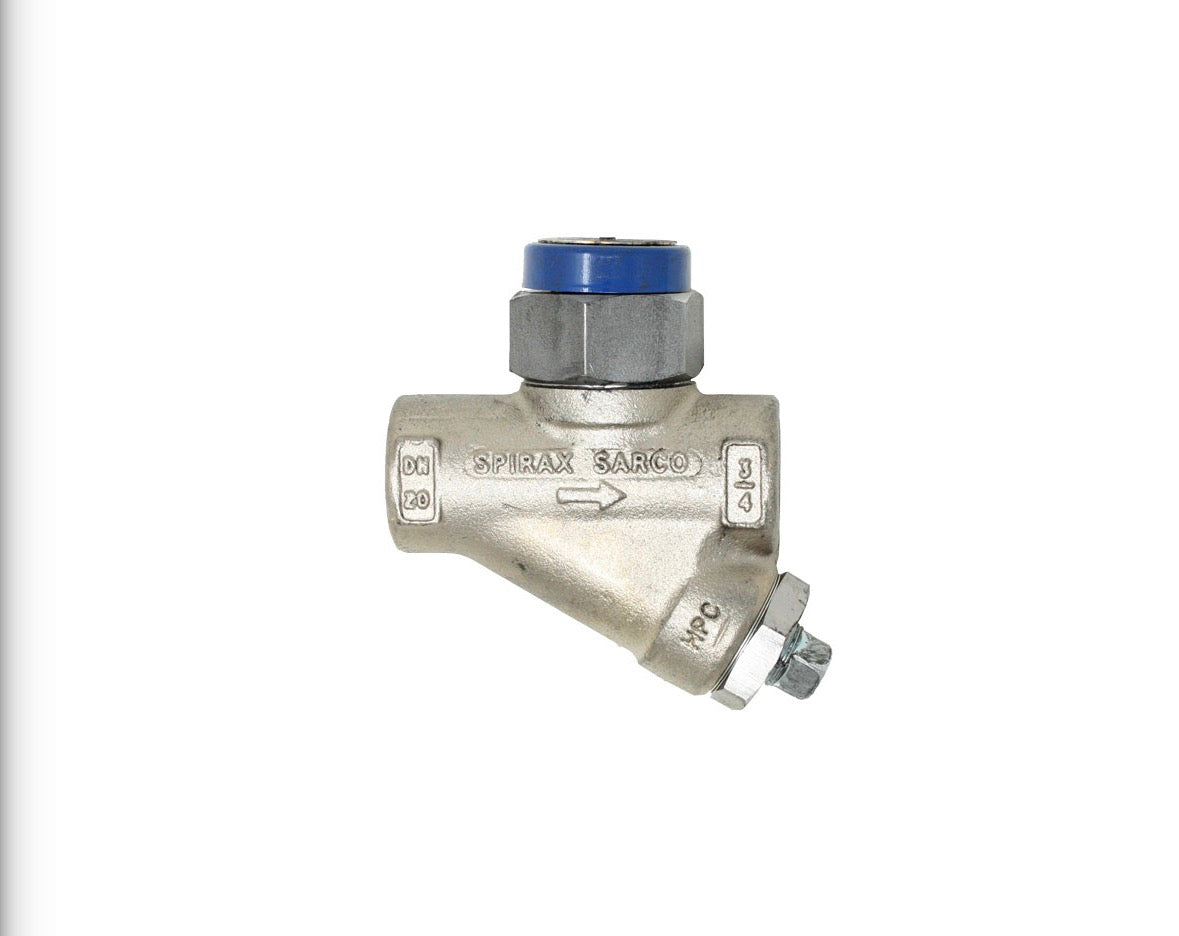

Spirax Sarco 0680862, TD42H High Capacity Thermo-Dynamic Steam Trap, 3/4 in, FNPT, 400 deg C, 42 bar, Stainless Steel
Description
Spirax Sarco Thermo-Dynamic Steam Trap, High Capacity, 3/4 in Nominal, FNPT, 90 mm Length, 42 bar, Stainless Steel, Electroless Nickel Preparation, 400 deg C
The TD42L and TD42H are maintainable thermodynamic steam traps. The TD42L is specifically designed for relatively small condensate loads and therefore is ideal for mains drainage applications. For process type loads the TD42H is available. For those applications where the release of air is a concern, an anti-air-binding disc is available i.e. TD42LA and TD42HA. All external body surfaces have an electroless nickel preparation (ENP) which is both energy saving and oxidation resistant.
SPECIFICATIONS
Brand: Spirax Sarco
Weight: 2.2 lbs
Nominal Size: 3/4 in
End Style: FNPT
Material: Stainless Steel
Max Operating Pressure: 600 psig
Max Allowable Pressure: 914 psig/up to 248 deg F
Max Allowable Temperature: 752 deg F/up to 609 psig
Finish: Electroless Nickel Preparation
Length: 90 mm
Manufacturer Name: Spirax-Sarco Inc
Series: TD42H
Type: High Capacity
Application: For relatively small condensate loads and therefore is ideal for mains drainage applications
Standards and Approvals: ASTM A743 Grade CA 40 F Body | Certificate No LRQ 0963008 | ISO 9001
ITEM FEATURES
- This product fully complies with the requirements of the European pressure equipment directive 97/23/EC
- Installation note: The TD42H should be installed in the horizontal plane, with a small drop leg proceeding them
- Disposal: This product is recycable, no ecological hazard is anticipated with the disposal of this product providing due care is taken
- 400 deg C at 42 bar g Maximum allowable temperature
- 95 bar g Maximum cold hydraulic test pressure
- 63 bar g at 100 deg C Maximum allowable pressure
- 0 deg C Minimum allowable temperature
- 0.25 bar g Minimum inlet pressure for satisfactory operation
- PN63 Body design condition
- 47 mm top to inlet center
