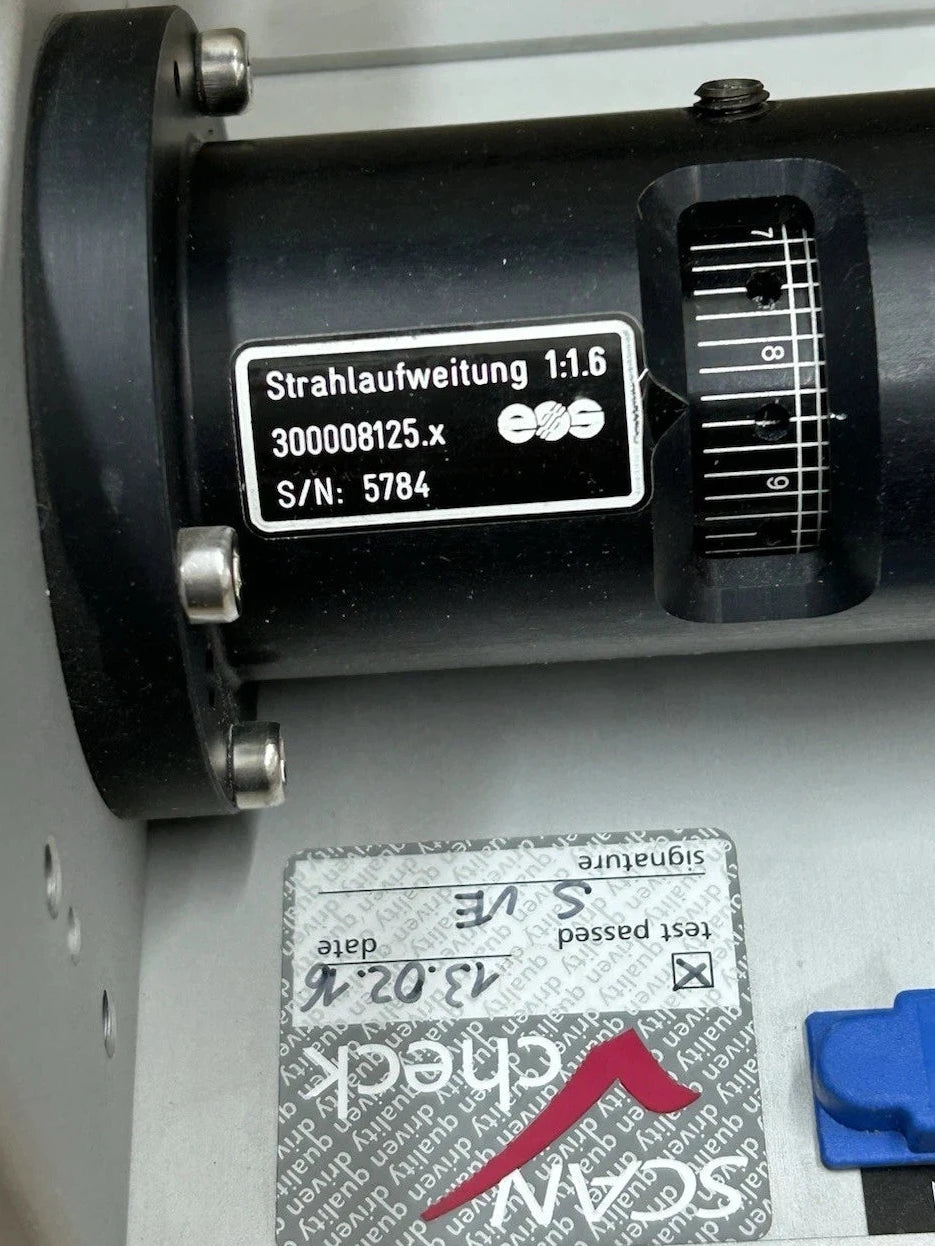

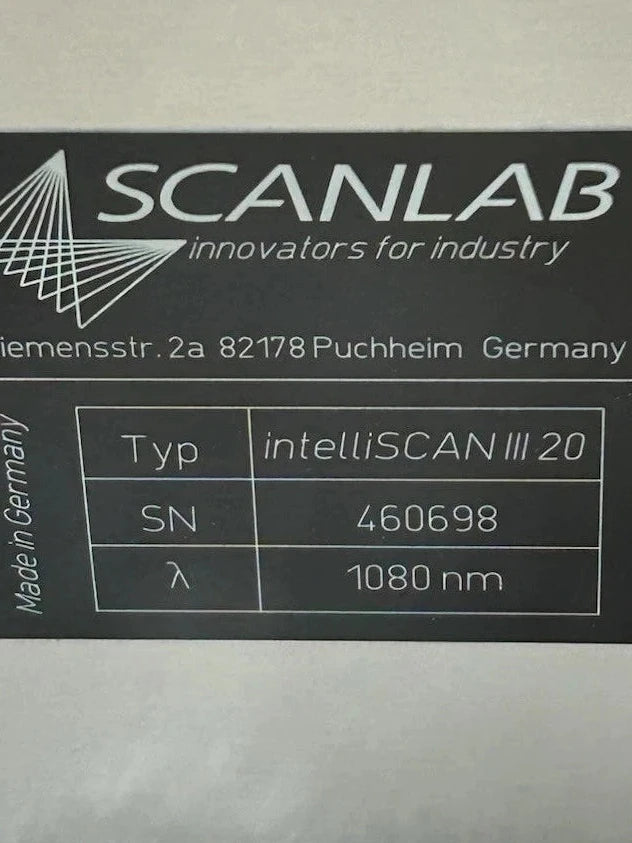

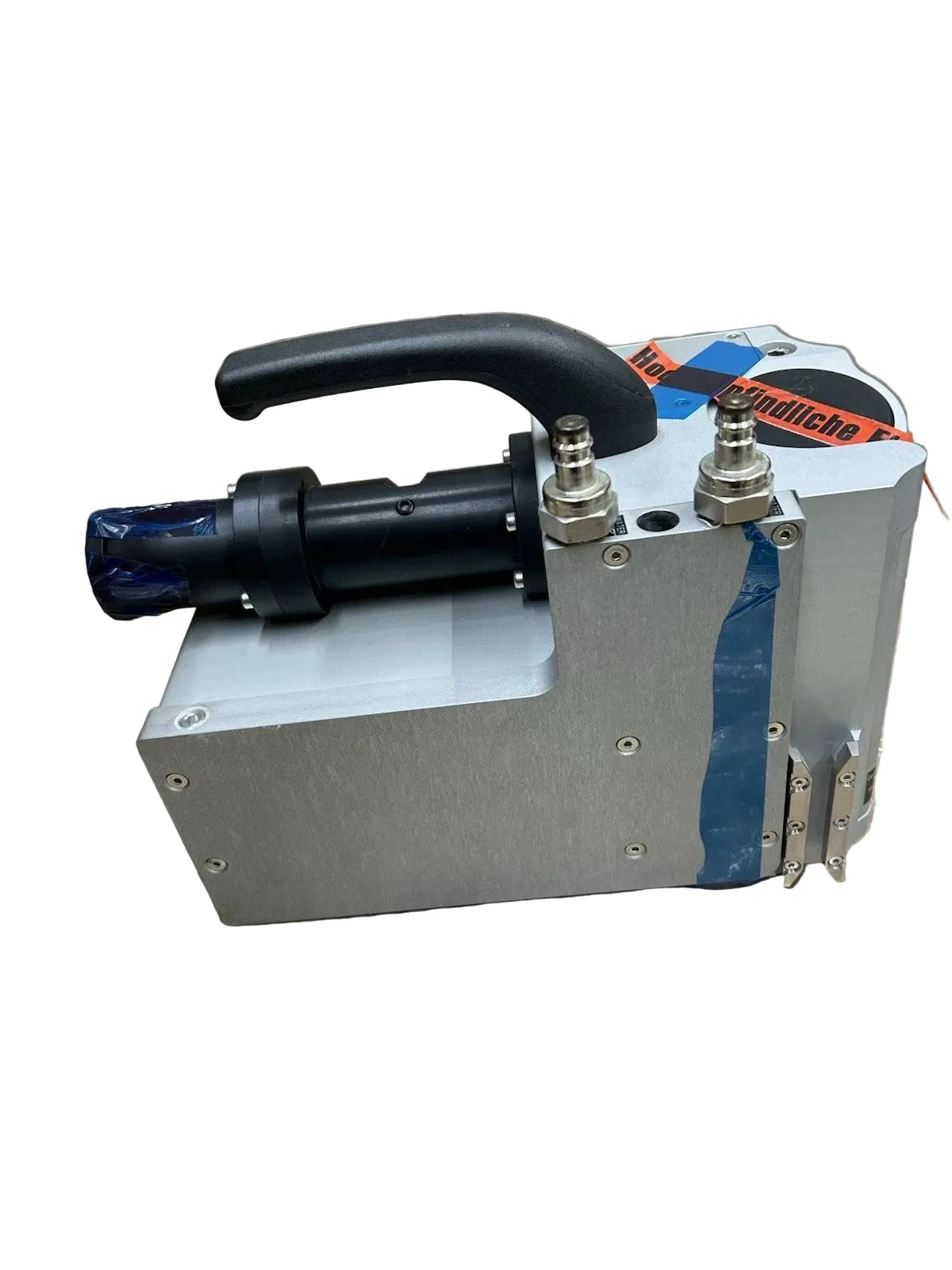

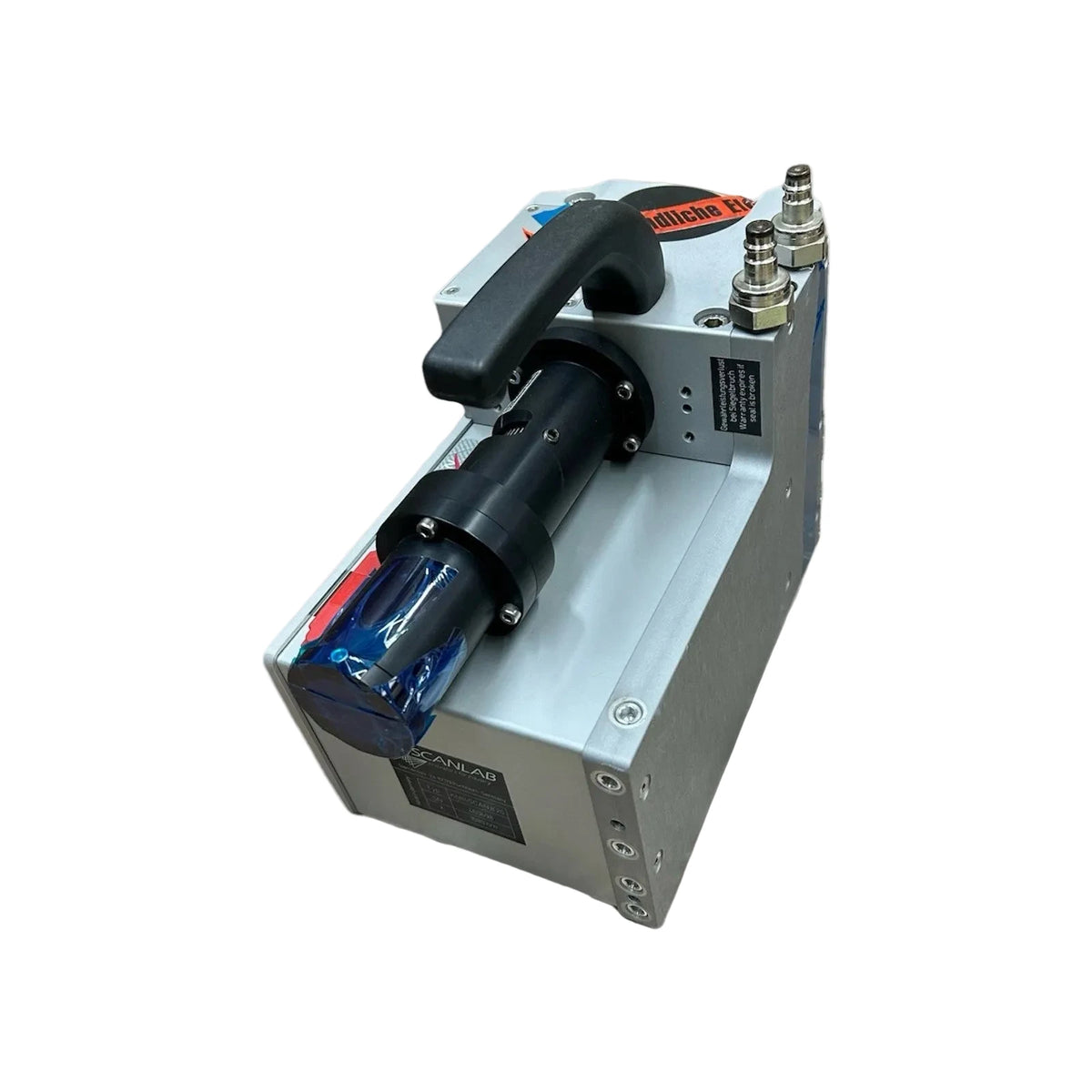

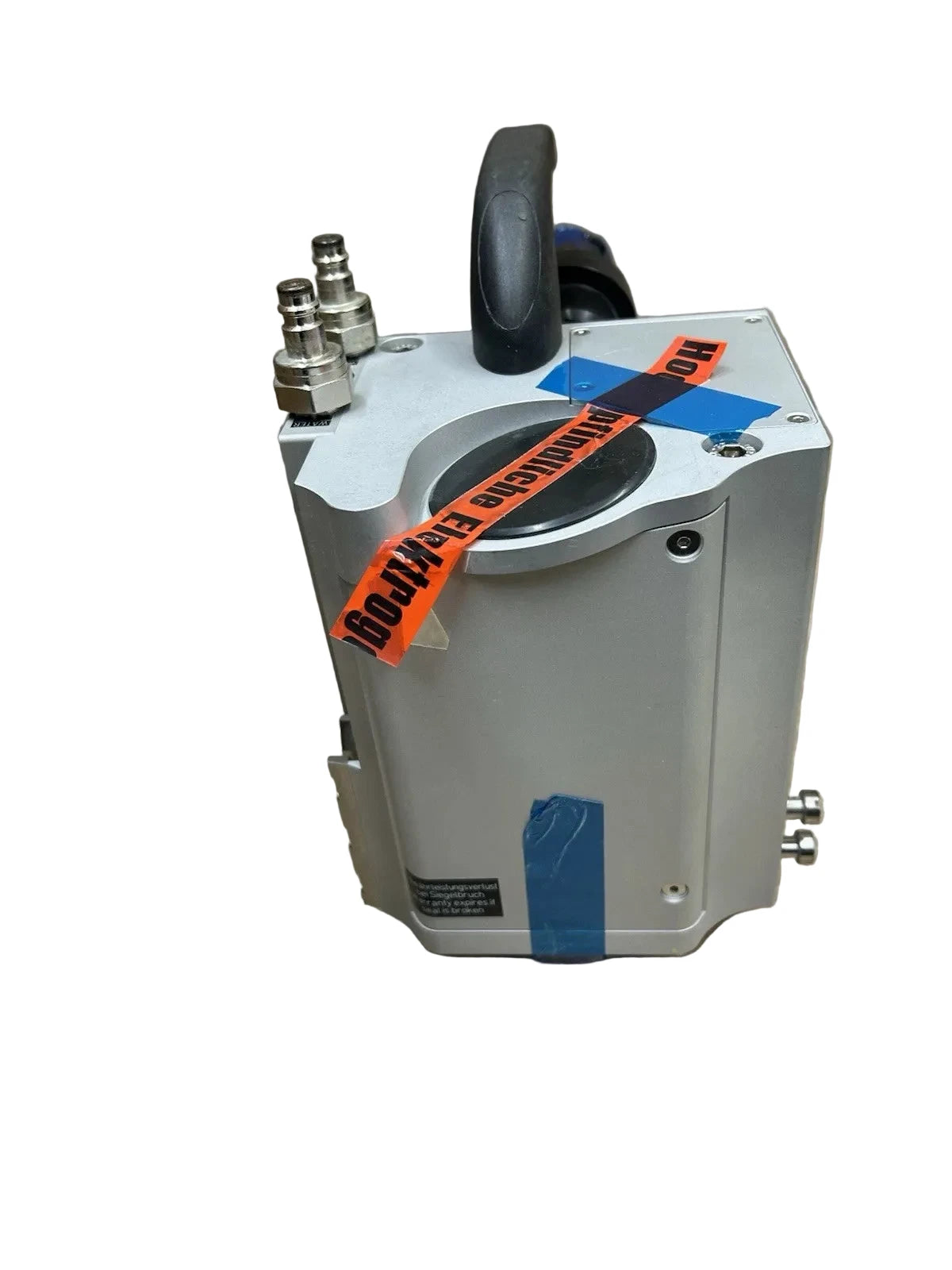

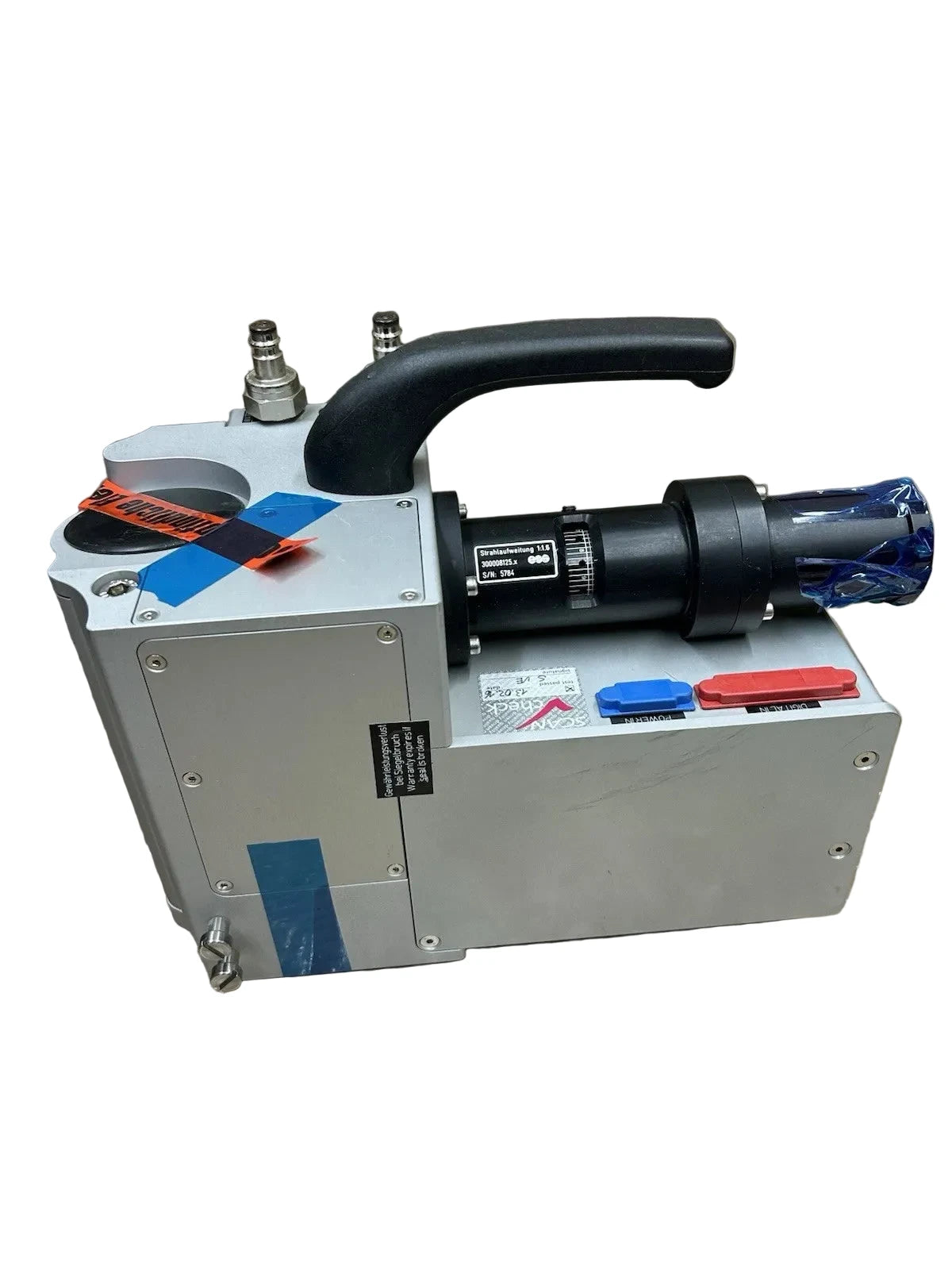

ScanLab intelliSCAN III 20 analog position detector 1:1:6 Focus Lens

CategoryintelliSCAN III 20

In Stock · Ready to Ship

Ships within 3 business days

$9,999.00
$9,999.00
Shipping calculated at checkout.

Product Details

intelliSCAN III 20


Print
Aperture
20 mm
Angle Transmitter of Galvanometer Scanners
analog position detector
ShowOptical Configuration
Wavelength range
(standard)
Standard coatings for all common laser systems:
YAG- & fiber lasers,
Green lasers,
UV lasers,
CO2 lasers

In addition, our portfolio includes numerous multiple wavelength and broadband coatings, as well as coatings for short-pulse applications and polarization-maintaining coatings
Max. laser power
(standard systems, 100% duty cycle)
1000 W @ 1064 nm
with air cooling
Typical scan angle
±0.35 rad (optical)
Image field size
(1064 nm, f = 160 mm)
60 mm x 60 mm
Typical spot size
(1064 nm, f = 160 mm, M2 = 1.0)
16 µm

ShowDynamics
Number of installed tunings
up to 3
Typical tuning
fast vector tuning
Tracking error
0.32 ms
Marking speed
(f = 160 mm)
1.0 m/s
Positioning speed
(f = 160 mm)
11.0 m/s
Writing speed
(with F-Theta lens, f = 160 mm)
High writing quality
230 cps
Good writing quality
340 cps
Step response time
(settling to 1/1000 of full scale)
1% of full scale
0.7 ms
10% of full scale
1.9 ms

Precision
Repeatability
(RMS)
< 2 µrad
Positioning resolution
(max.)*
18 bit *
Nonlinearity
< 0.9 mrad / 44°
Temperature drift
Offset
< 20 µrad/K
Gain
< 15 ppm/K
8-h-drift
(after 30 min warm-up)

Offset
< 100 µrad
Gain
< 100 ppm
24-h-drift
(after 3 h warm-up)

Offset
< 100 µrad
Gain
< 100 ppm
* 18 bit: based on the full angle range (e.g. positioning resolution 2.8 µrad for angle range ±0.36 rad),
resolutions better than 16 bit (11 µrad) only together with SL2-100 interface
Electronics / Control
Servo control galvanometer scanner
digital servo control board
Control interface
(alternatives)
digital SL2-100,
digital XY2-100 Enhanced
Advanced diagnosis options
yes (iDRIVE)
Power requirements
Available variants:
30 V DC, max. 6 A
48 V DC, max. 6 A
Mechanics
Scan axes
2-axis system
Housing variants
standard: scan head
alternative: module (without housing)
Connector positions
beam entrance side
Weight without objective
(standard housing)
5.8 kg
Dimensions (L x W x H)
(standard housing)
(207 x 140 x 180) mm3
Beam displacement
25.25 mm

Other Provisions
Water cooling
optionally
Air cooling
yes
Other Specifications
Operating temperature
25 °C ± 10 °C
Gain error
< 5 mrad
Zero offset deviation
< 5 mrad

Specifications
BrandZWZ Global
CategoryintelliSCAN III 20
Shipping weight12.0 lb
