Primary brand
Parker Hannifin
Main function
Hydraulic pump
Product series / family name
Pumps (hydraulic) > Variable displacement > Axial piston pumps > High pressure
Sub-range name
PV plus series
Functions

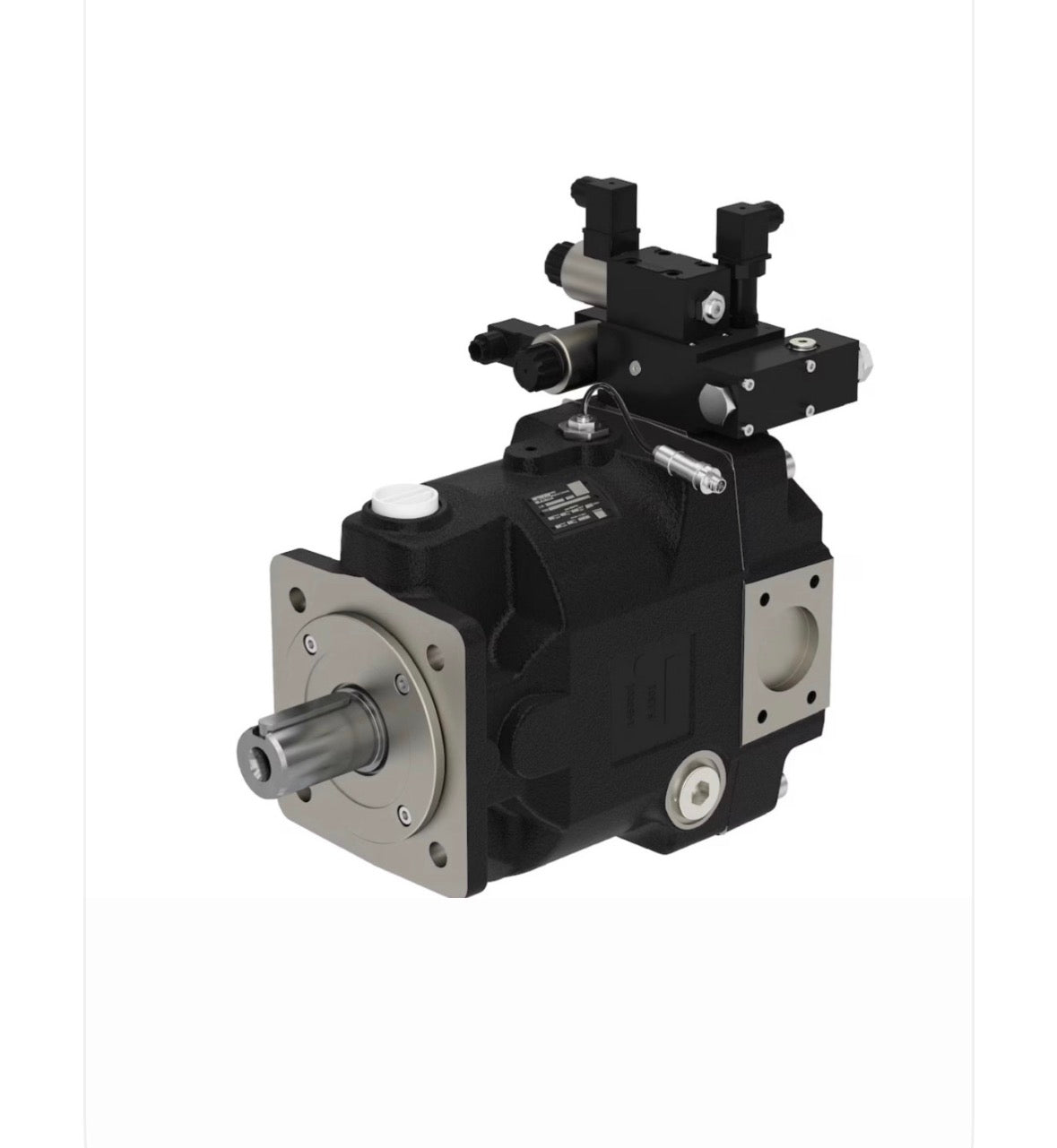

Hydraulic variable-displacement axial piston pump
Design
ISO 25mm keyed shaft (CW rotation)
through-drive SAE A D82.55mm coupl. shaft
pressure control / integrated pilot vlv.
Size 1
Rated fluid contamination (ISO) 20/18/15
Fluid optimum viscosity 16-100cSt (max. start-up is 100cSt)
SAE A 2-bolt adaptor
SAE A 9T through-drive coupling shaft
SAE A 2-bolt through-drive coupling flange
Flow
7.9gallons/min (GPM) at 1500rpm
30L/min (LPM) at 1500rpm
Pressure
420bar / 6092psi max. operating pressure
Rotational speed
50rpm min.
3000rpm max.
Moment of inertia
1600kg.mm2 (0.0016kg.m2)
Connection type
1 x G1/2" BSPP drain port "L1"
2 x G1/2" BSPP drain ports "L2 & L3"
1 x G1/4" BSPP brg. flushing port "L4"
Mounting mode
ISO 100mm 4-bolt mounting flange (as per ISO 3019/2)
Material
NBR seal / FKM shaft seal
Order code / Manufacturer SKU
PV020R1K1AYNMMC
Manufacturer product status
Commercialized
Displacement volume
20cm3/rev. max. displacement
1.2in3/rev. max. displacement
Benefits
PVplus axial piston pumps have been designed and optimized for use in heavy duty industrial and marine applications
Wide range of displacements and control options
With an integrated pre-compression volume that ensures reduced pulsation and low noise level
Modular approach and frame size design -- easy conversion and reduced inventory expenditures
Fast response
Exceptionally long service life
High conversion flexibility
Service-friendly
Excellent suction characteristics and high self-priming speeds which provide increased productivity
High self-priming speed
Robust and heavy duty design -- long lifetime and service intervals
Compact design
Accurate and highly dynamic controls result in outstanding response characteristics and productivity improvements
Open circuit with variable swashplate piston pumps
High speed ratings and a wide range of highly responsive controls
Displacements from 16-360 cc/rev which covers wide range of applications and flow requirements
Operating pressures of up to 350bar (continuous) / 420bar (intermittent) -- high power density
HFC capability up to 210bar -- suitable for open circuit hydraulic systems where fire-resistant fluids are required
