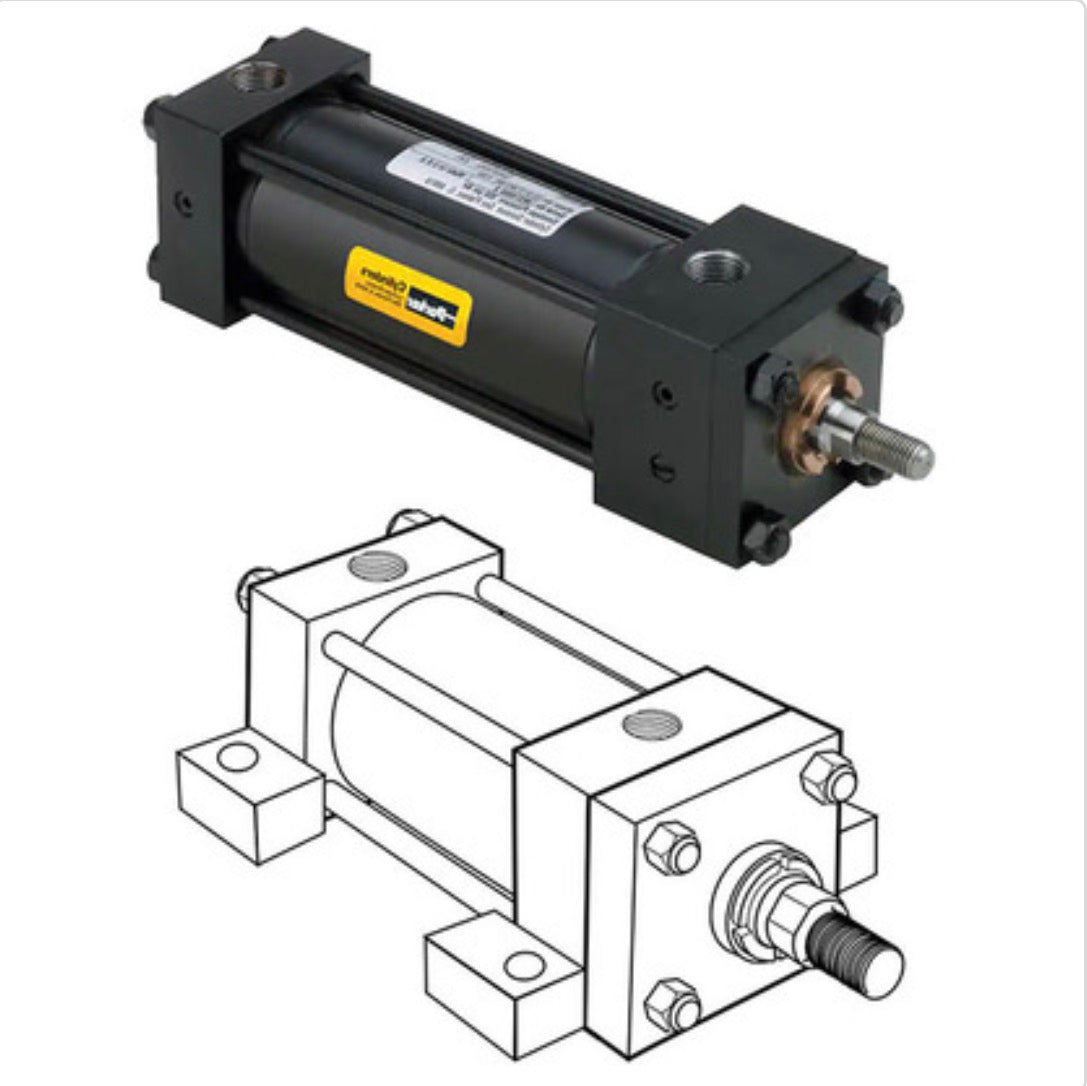

Parker Hannifin 1H000165111 based on model code 4.00CCP2ALUS44AC52.000
Description
Double-acting NFPA heavy-duty pneumatic cylinder with "LipSeal" piston + cushion at both ends + thrust key mounting modification - special model - Parker Hannifin (2A series) - 4" bore (B4") - 52" stroke (S52") - 2 x 1/2" NPT threaded pneumatic ports - 1-1/4"-12 UNF male small threaded rod-end - Side lug mounting (NFPA MS2) - 1-3/4" no.4 rod diameter - based on model 4.00CCP2ALUS44AC52.000
Specifications
Primary brand
Parker Hannifin
Main function
Pneumatic cylinder
Product series / family name
Cylinders (Pneumatic) > Heavy-duty pneumatic cylinders
Sub-range name
2A series
Bore size
4" bore (B4")
Stroke length
52" stroke (S52")
Functions
Double-acting NFPA heavy-duty pneumatic cylinder
Design
"LipSeal" piston
cushion at both ends
thrust key mounting modification
based on model 4.00CCP2ALUS44AC52.000
special model
Repairable
filtered and lubricated air as input medium
cushion at both ends
thrust key mounting modification
based on model 4.00CCP2ALUS44AC52.000
special model
Repairable
filtered and lubricated air as input medium
Pressure
250psig (max. air service)
17bar (max. air service)
17bar (max. air service)
Shape
Rectangular
Diameter
1-3/4" no.4 rod
Connection type
2 x 1/2" NPT threaded pneumatic ports
1-1/4"-12 UNF male small threaded rod-end
1-1/4"-12 UNF male small threaded rod-end
Mounting mode
Side lug mounting (NFPA MS2)
Material
Hard Chrome-plated steel body
One-piece nodular Iron piston
Bronze gland
Steel head and cap
Hard Chrome-plated induction case-hardened medium Carbon steel piston rod
One-piece nodular Iron piston
Bronze gland
Steel head and cap
Hard Chrome-plated induction case-hardened medium Carbon steel piston rod
Ambient air temperature for operation
-10°F...+165°F / -23°C...+73 °C
Order code / Manufacturer SKU
1H000165111
Manufacturer product status
Commercialized
Application type
Factory automation
Machine tools
Vehicle assembly facilities
Machine tools
Vehicle assembly facilities
Benefits
Jewel rod gland for increased machine productivity
Serrated lip rod seal for positive non-leak sealing
Every cylinder is individually tested to assure reliability
Serrated lip rod seal for positive non-leak sealing
Every cylinder is individually tested to assure reliability
