Parker Hannifin 1H000041200 based on model code 6.00H2ANJLUS14A23.000

Brand: Parker Hannifin

Availability:In Stock

Ships within 3 business days

$3,999.00 USD
$3,999.00 USD
Shipping calculated at checkout.

Description

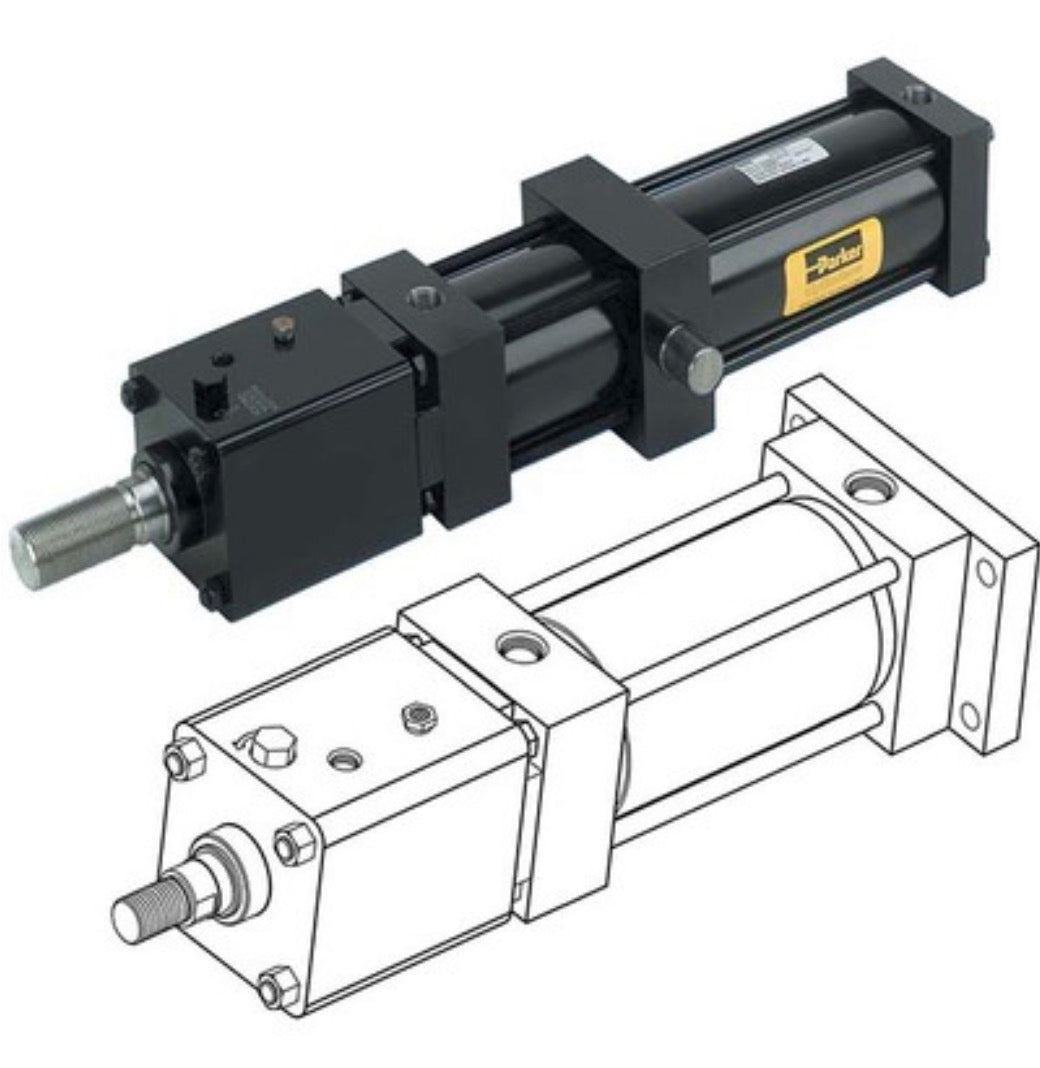

Double-acting NFPA non-lube heavy-duty pneumatic cylinder with standard rod lock + "LipSeal" piston - special model - Parker Hannifin (2ANJ series) - 6" bore (B6") - 23" stroke (S23") - 2 x 3/4" NPT threaded pneumatic ports - 1"-14 UNF male small threaded rod-end - Cap rectangular flange mounting (NFPA MF2) - 1-3/8" no.1 rod diameter - based on model 6.00H2ANJLUS14A23.000

Specifications

Primary brand
Parker Hannifin
Main function
Pneumatic cylinder
Product series / family name
Cylinders (Pneumatic) > Rod-lock air cylinders
Sub-range name
2ANJ series
Bore size
6" bore (B6")
Stroke length
23" stroke (S23")
Functions
Double-acting NFPA non-lube heavy-duty pneumatic cylinder
Design
standard rod lock
"LipSeal" piston
based on model 6.00H2ANJLUS14A23.000
special model
Repairable
Pressure
100psig (max. air service)
6.9bar (max. air service)
Shape
Rectangular
Diameter
1-3/8" no.1 rod
Connection type
2 x 3/4" NPT threaded pneumatic ports
1"-14 UNF male small threaded rod-end
Mounting mode
Cap rectangular flange mounting (NFPA MF2)
Material
Hard Chrome-plated steel body
One-piece nodular Iron piston
Bronze gland
Steel head and cap
Hard Chrome-plated induction case-hardened medium Carbon steel piston rod
Ambient air temperature for operation
-10°F...+165°F / -23°C...+73 °C
Order code / Manufacturer SKU
1H000041200
Manufacturer product status
Commercialized
Application type
Factory automation
Machine tools
Vehicle assembly facilities
Benefits
Jewel rod gland for increased machine productivity
Series 2AN rounded lip rod seal for superior non-lube performance
Every cylinder is individually tested to assure reliability

Vendor: Parker Hannifin
