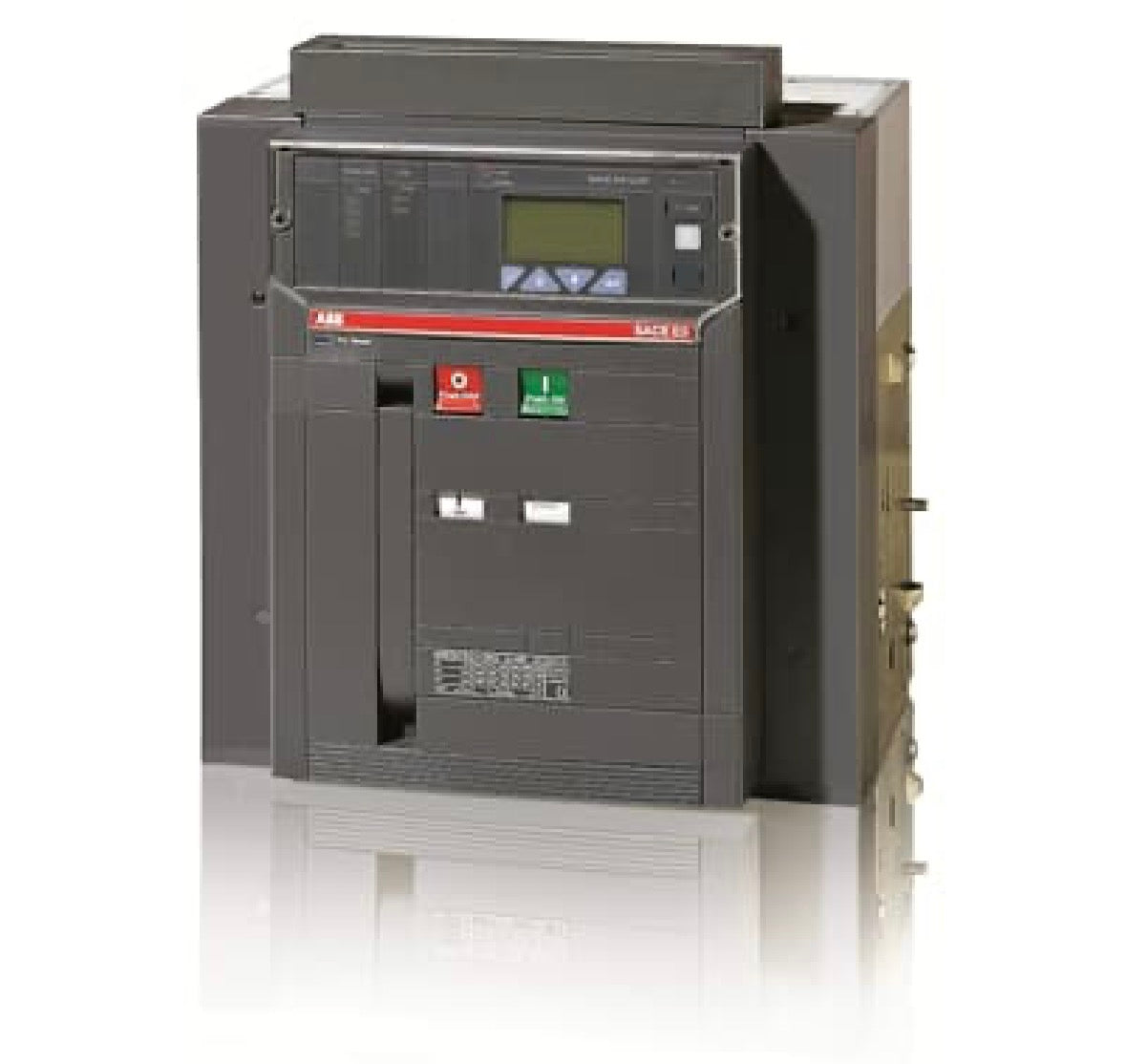

ABB E3N-A 2500 PR122/P-LSIG In=2500A 3p F HR

Part number 1SDA057419R1

CategoryCircuit Breakers

In Stock · Ready to Ship

Ships within 3 business days

$17,033.45
$17,033.45
Shipping calculated at checkout.
Product ID: 1SDA057419R1

Product Details

General Information

Extended Product Type:
E3N-A 2500 PR122/P-LSIG In=2500A 3p F HR
Product ID:
1SDA057419R1
EAN:
8015644596828
Catalog Description:
E3N-A 2500 PR122/P-LSIG In=2500A 3p F HR
Long Description:
SACE EMAX CIRCUIT-BREAKER E3N-A 2500A UL THREE-POLE FIXED WITH TERMINALS REAR HORIZONTAL OVERCURRENT RELEASE PR122/P-LSIG R2500 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED

Material Compliance

REACH Declaration:
RoHS Declaration:
RoHS Information:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
SCIP:
6b45de14-a931-44f3-a74b-cab9ef66442a Italy
Simplified SCIP:
c35cb0db-5d58-4204-9c5d-18100bbfa51b France
7f432927-4f71-485e-a6f0-312a43b8297e Romania
05244967-3c92-415b-941a-a9224c6c23bf Belgium
cd893bca-d33a-4da0-9a7d-dd4437d81c2d Hungary
2f1da724-95c5-4668-89a1-adebb02aaedb Spain
266779c8-5a51-4467-b185-25b05a80730f Croatia
16309cee-18a8-4c44-94b6-47a6b701045f Netherlands
07c88d65-ea6c-4bf2-b9d8-991a45d33ea1 Portugal
db9e209b-4f45-4868-aab8-a7c5ffc299fe Greece
e89d959a-36c7-4c86-a483-4d4e32fd6bd2 Sweden

Environmental

Environmental Information:

Ordering

EAN:
8015644596828
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
404 mm
Product Net Height:
418 mm
Product Net Depth / Length:
302 mm
Product Net Weight:
60 kg

Container Information

Package Level 1 EAN:
8015644596828

Additional Information

Product Main Type:
SACE Emax
Product Name:
Air Circuit Breaker
Product Type:
CB
Version:
F

Technical

Current Type:
AC
Electrical Durability:
Ue =< 508 V 8000 cycle
Ue = 508 ... 635 V 8000 cycle
30 cycles per hour
Mechanical Durability:
15000 cycle
30 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 205 W
Rated Current (In):
2500 A
Rated Operational Current (Ie):
2500 A
Rated Service Short-Circuit Breaking Capacity (Ics):
(240 V AC) 65 kA
(480 V AC) 50 kA
(600 V AC) 50 kA
Rated Uninterrupted Current (Iu):
2500 A
Rated Voltage (Ur):
600 V
Release:
PR122/P-LSIG
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
UL 1066
Sub-type:
E3
Terminal Connection Type:
Fixed Circuit-Breakers
Rear flat Horizontal

Technical UL/CSA

Interrupting Rating acc. to UL1066:
(240 V AC) 65 kA
(480 V AC) 50 kA
(600 V AC) 50 kA

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:
Instructions and Manuals:

External Classifications and Standards

WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Specifications
BrandABB
Part number1SDA057419R1
UPC / Barcode8015644596828
CategoryCircuit Breakers
Shipping weight60.0 kg
