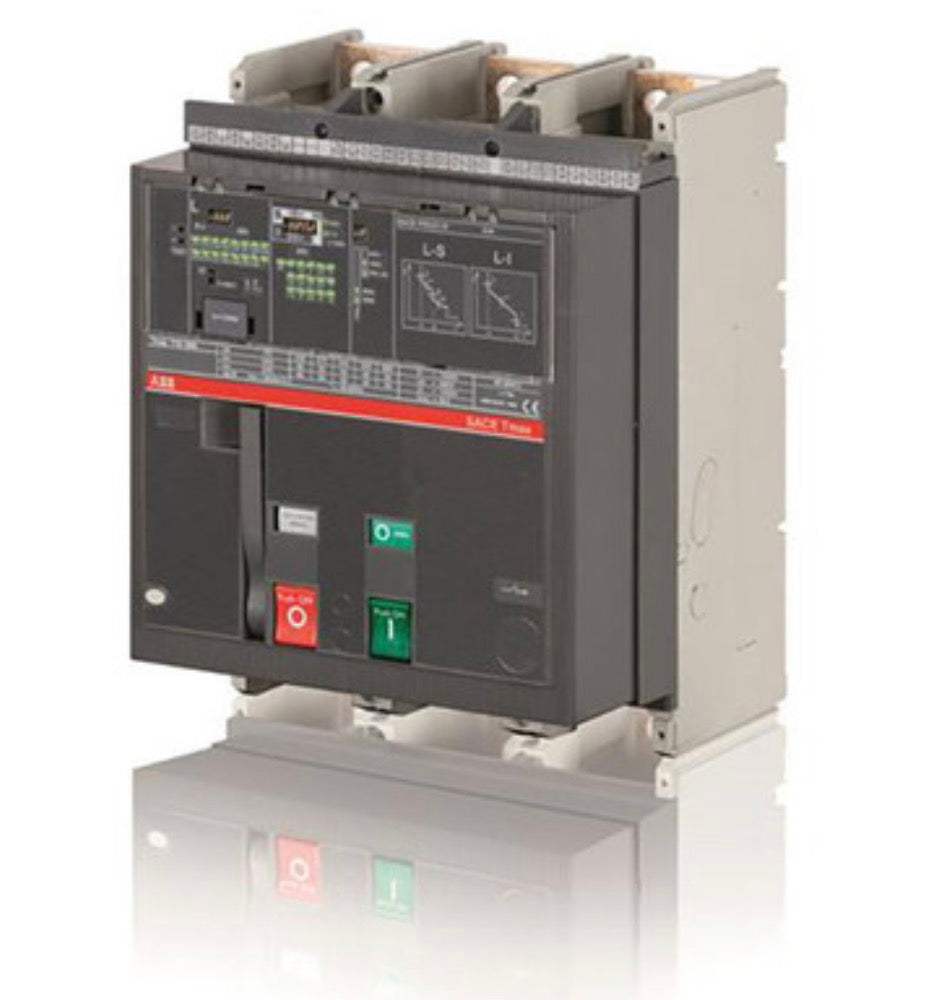

ABB 1SDA062978R1 T7V 1250 PR231/P LS/| In=1250A 3p F F M

Brand: ABB

Availability:In Stock

Ships within 3 business days

$19,999.00 USD
$19,999.00 USD
Shipping calculated at checkout.

Description

Moulded / Molded Case Circuit Breaker (MCCB) - ABB / SACE (Tmax T (IEC) series) - T7V 1250 PR231/P LS/I In=1250A 3p F F M - 3-poles (3P3d) - Rated current 1250A - Short circuit breaking capacity (Icu) 150kA (415Vac) - Electronic (PR231/P LS/I) trip unit - equivalent to T7V1250PR231PLSIIn1250A3pFFM

Specifications

Primary brand
ABB
Secondary brand
SACE
Main function
Moulded Case Circuit Breaker (MCCB)
Product series / family name
Tmax T (IEC)
Sub-range name
T7V complete breakers
Functions
Moulded / Molded Case Circuit Breaker (MCCB)
Poles
3-poles (3P3d)
Rated current.
1250A
Trip current rating
1250 AT
Frame current rating
1250 AF
Rated operating voltage (Ue)
690 V
Rated Voltage (DC)
750Vdc
Rated voltage (AC)
690Vac
Rated impulse voltage (Uimp)
8 kV
Rated insulation voltage (Ui)
1000 V
Connection type
Ring-lug or bar connections
Ultimate short circuit current breaking capacity (Icu)
200kA (240Vac)
150kA (380Vac)
150kA (415Vac)
130kA (440Vac)
100kA (500Vac)
60kA (690Vac)
Short circuit withstand current (Icw)
15kA (1s)
Service short circuit current breaking capacity (Ics)
200kA (240Vac)
150kA (380Vac)
150kA (415Vac)
130kA (440Vac)
100kA (500Vac)
45kA (690Vac)
Service short circuit current breaking capacity as a percentage of Icu (Ics%)
(415Vac) 100 %
Trip unit type
Technology = Electronic
Series = PR231/P LS/I
Protection = LS/I
Display = none
Protection functions
(L) Protection against overload
(S) Protection against short-circuit with time delay OR (I) Instantaneous protection against short-circuit
Protection settings
L - Protection against overload -- adjustable 0.4...1 x In (500A...1250A)
S - Protection against short-circuit with time delay -- adjustable 1...10 x In (1250A...12500A); with adjustable time trip curve
I - Instantaneous protection against short-circuit -- adjustable 1...10 x In (1250A...12500A)
Operating mode
Stored energy closing/opening mechanism
Dimensions
H268mm x W210mm x D178mm
Power dissipation/losses
(1-pole) 78.3 W
Order code / Manufacturer SKU
T7V 1250 PR231/P LS/I In=1250A 3p F F M
Manufacturer product status
Commercialized
Equivalent to
T7V1250PR231PLSIIn1250A3pFFM
EAN code
8015644655273
UNSPSC code
39121616
Compliant with standard(s)
IEC 60947-2
EC directive "Low Voltage Directives" (LVD) no. 2006/95/CE (in replacement of 73/23/ CEE and subsequent amendments)
EC directive "Electromagnetic Compatibility Directive" (EMC) 2004/108/CE
IEC 60073
IEC 60417-2
IEC 60529
IEC 60068-2-30 (tropicalization)
IEC 60068-2-6 (resistance to shocks and vibrations)
IEC 60068-2-27 (resistance to shocks)
