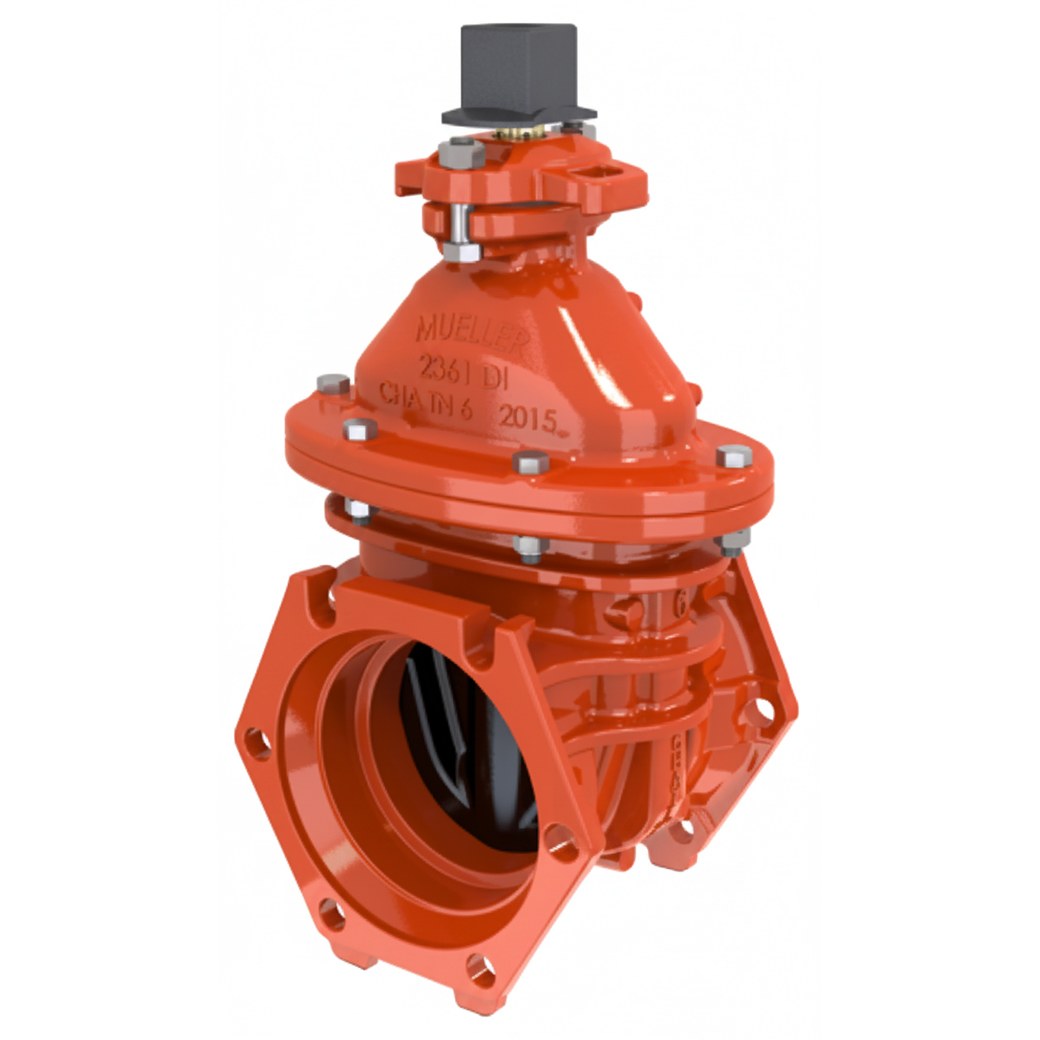

A-2361 Series 12 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve
Product Details
Product Description
- Open Left (counter-clockwise)) direction of opening
- Mueller resilient wedge gate valves have features to make them easier to operate
- Preserve sealing capability and interior coating integrity for many years of reliable service
- Designed for potable water application
- Nominal 10 mils Mueller Pro-Gard® Fusion Bonded Epoxy coated interior and exterior surfaces
- Iron wedge, symmetrical and fully encapsulated with molded rubber and no exposed iron
- Triple O-ring seal (2 above the thrust collar and 1 below)
- Made in US End Connection 1
Mechanical Joint
End Connection 2
Mechanical Joint
End Connections
Mechanical Joint
Pressure - Maximum
350 psi
Valve Size
12 in
Weight
303 lb
Characteristics & Features
Coating
Fusion Bonded Epoxy
Collection
A-2361 Series
Ductile Iron Pipe Type
Ductile Iron Mechanical Joint Pipe
Material
Ductile Iron
Valve Body Style
Open Left
Valve Disc Material
Ductile Iron
Valve Operator
Handwheel
Valve Port Opening
Full Port
Valve Stem
Non-rising
Valve Type
Resilient Wedge Gate Valve
Electrical & Operational Information
Maximum Temperature
170
Warranty & Product Information
ANSI
ANSI 372, ANSI 61, ANSI C515, ANSI C550
Application
Potable Water
ASME
ASME B16.1 Class 125
ASTM
ASTM A-536, ASTM A-126 Grade B, ASTM D-2000
AWWA
AWWA C-111, AWWA C-515, AWWA C-550
FM Approved
Yes
ISO
ISO 9001
NSF
NSF 372, NSF 61
NSF Certified
Yes
Recommended Valve Application
Water
UL Listed
UL 262
Specifications
| Brand | Mueller |
|---|---|
| Category | Gate Valve |
| Shipping weight | 303.0 lb |
Need a datasheet, cross-reference, or bulk pricing? Request a quote
Shipping & Returns
-
Ships in One Business Days
In-stock orders are packed and handed to the carrier within 3 business days. Tracking is emailed as soon as it ships.
-
30 Business Day Returns
Unused items in original packaging can be returned within 30 business days of delivery.
-
LTL Delivery
Large or heavy items ship via LTL freight carrier. Lift-gate delivery is included at no extra charge.
A-2361 Series 12 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve
$5,999.00
